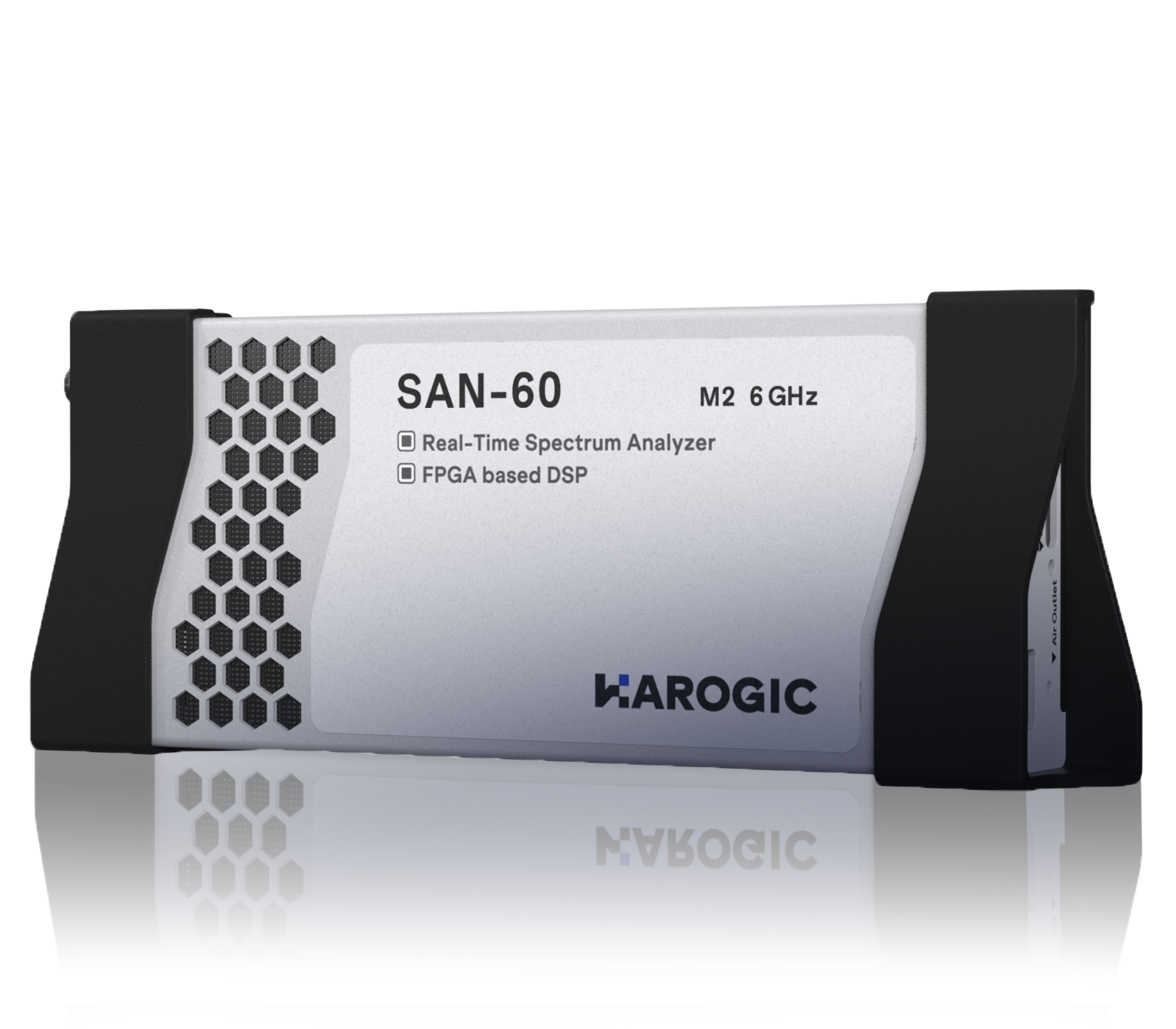

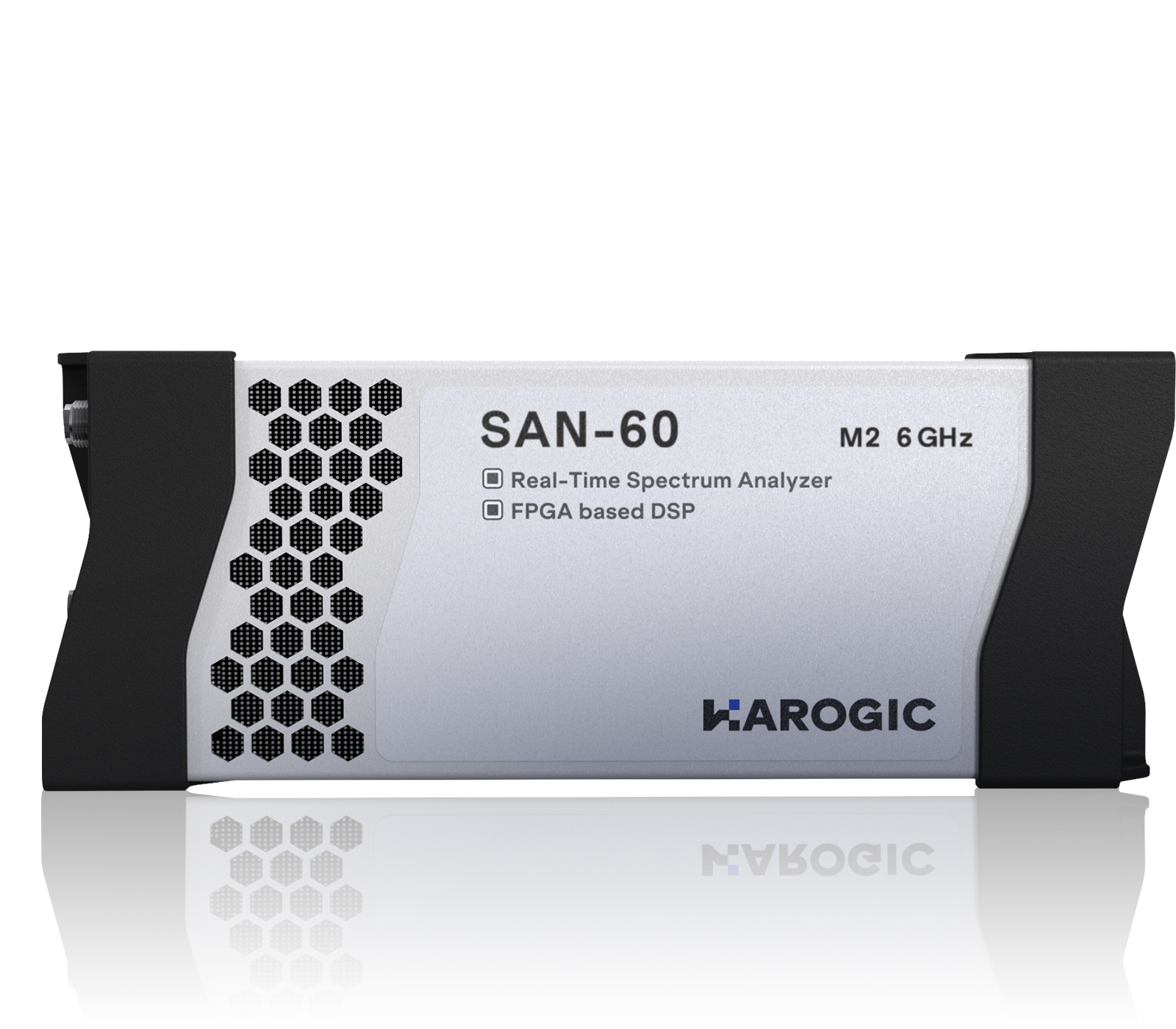

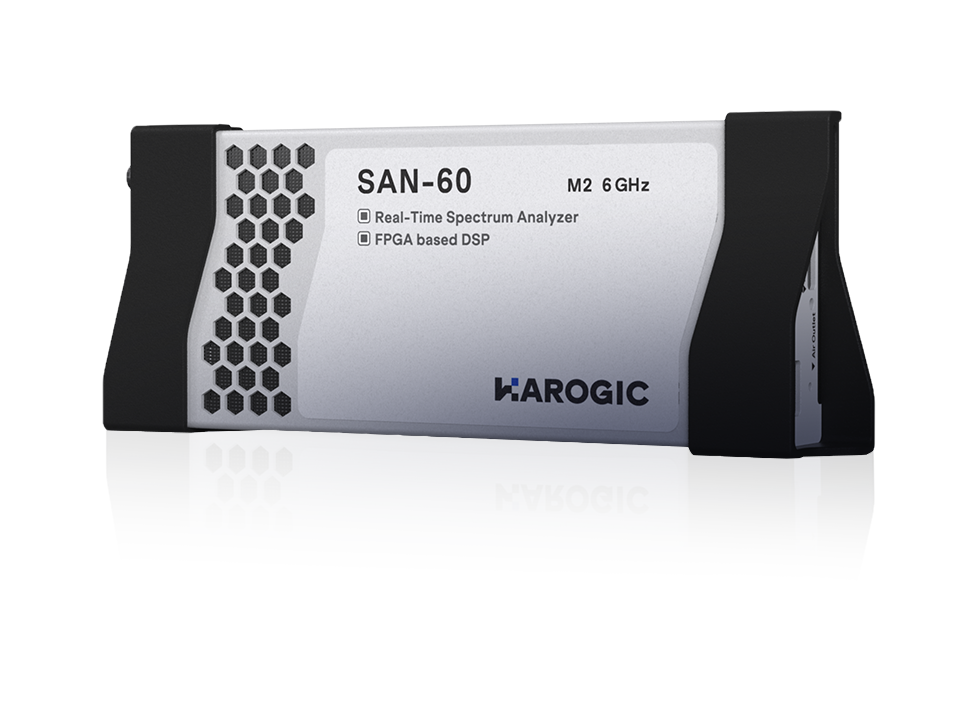

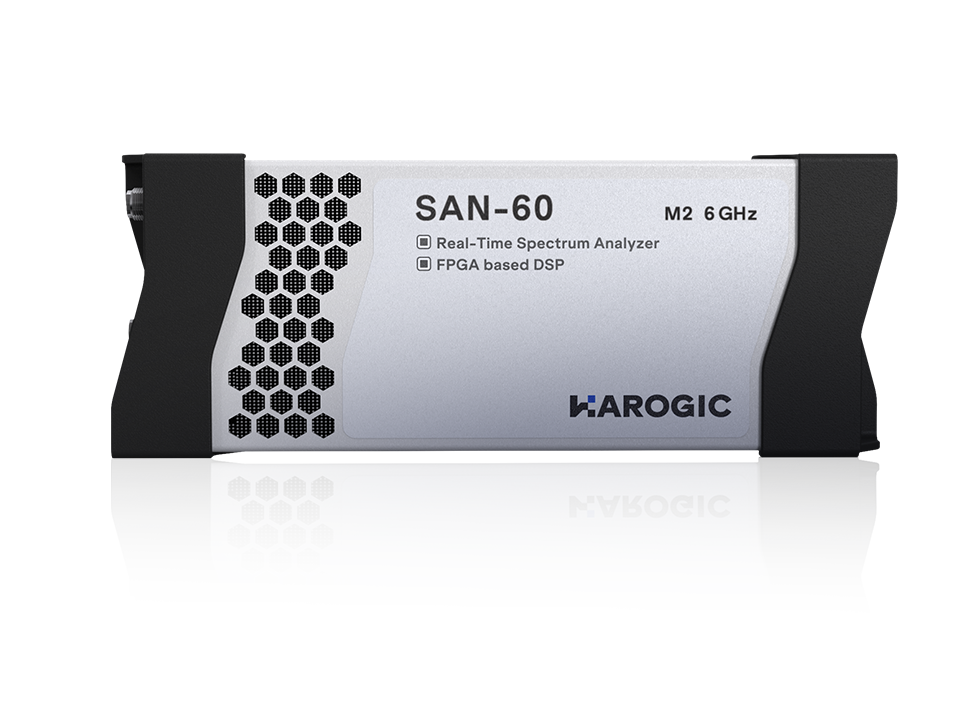

SAN Series
KEY FACTS

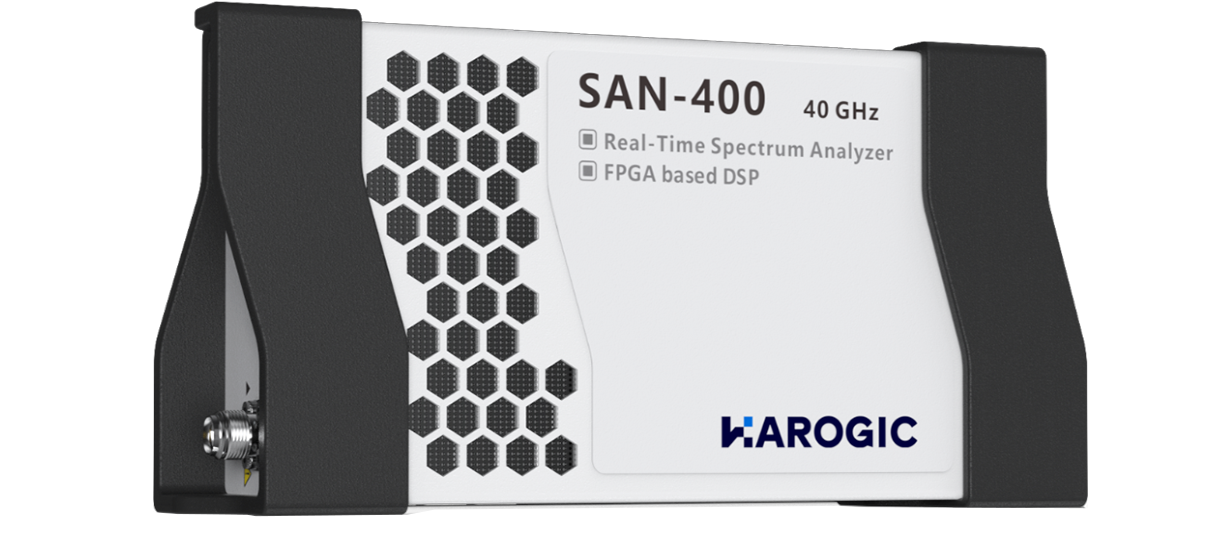

Frequency Range: 9 kHz to 4.5/6.3/8.5/40 GHz
1 GHz DANL: -158 dBm/Hz
1 GHz Phase Noise: -107.5 dBc/Hz@10 kHz
Analysis Bandwidth: 6.25/25/100 MHz
USB3.0/2.0 Type C Interface
Highly Compatible API Interface
ARM and X86 Processor are supported
Linux and Windows operating systems are supported
Get a Quote
Benefits
Highlight
SAN series offers exceptional RF spectrum analysis in a compact, USB-powered form. With a frequency range of 9 kHz to 6.3 GHz, it ensures precise measurements through its 25 MHz analysis bandwidth and over 20 GHz/s sweep speed. Its superior dynamic range of -160 dBm/Hz and excellent phase noise performance at -110 dBc/Hz at 1 GHz make it an invaluable tool for accurate and efficient spectrum analysis.
Products
Videos
HAROGIC Quick Start Guide for SA Series
HAROGIC SAStudio4 Phase Noise Measurement Guide
How to Use API With HAROGIC Model
MoreAvailable
Models
SAN SERIES
Model
Product Manual
Frequency
Phase Noise 1 GHz,
10 kHz offset
10 kHz offset
DANL 1 GHz,
Amp On
Amp On
Analysis Bandwidth
Sweep Speed
RBW=250 kHz
RBW=250 kHz
Price
Options
Code
Option
Descriptin
01
Built-in OCXO Reference Clock
Built-in Hardware
02
Built-in Signal Generator
Built-in Hardware
05
Internal high precision GNSS
Built-in Hardware
06
Build-in GNSS disciplined reference clock
Built-in Hardware
20
MUXIO IO Board
Accessory
21
External GNSS
Accessory
22
External High Precision GNSS
Accessory
23
External GNSS Disciplined OCXO Reference Clock
Accessory
34
External omnidirectional antenna, 400MHz to 8000MHz, Gain<2dBi
Accessory
35
External active directional antenna, frequency range: 0.5 to 10 GHz
Gain: < 5 dBi (amp off); < 25 dBi(amp on)
Gain: < 5 dBi (amp off); < 25 dBi(amp on)
Accessory
40
T1 Temperature Class
Built-in Hardware
41
T2 Temperature Class, Only Available for Core
Built-in Hardware
71
Basic Digital Modulation Analysis
Software
72
Pulse detection
Software
