PGA-60
KEY FACTS
Frequency range: 9 kHz to 6 GHz
Maximum level output：7 dBm to 14 dBm
Level output up to 25 dBm (opt.)
1 GHz phase noise: < -124 dBc/Hz@10 kHz
Maximum real-time bandwidth: 50 MHz
Maximum playback output bandwidth: 100 MHz
0 dBm output harmonics: <-50 dBc (typ.)
Operation time: 2.5 hours (typ.)
Get a Quote
Benefits
Highlight

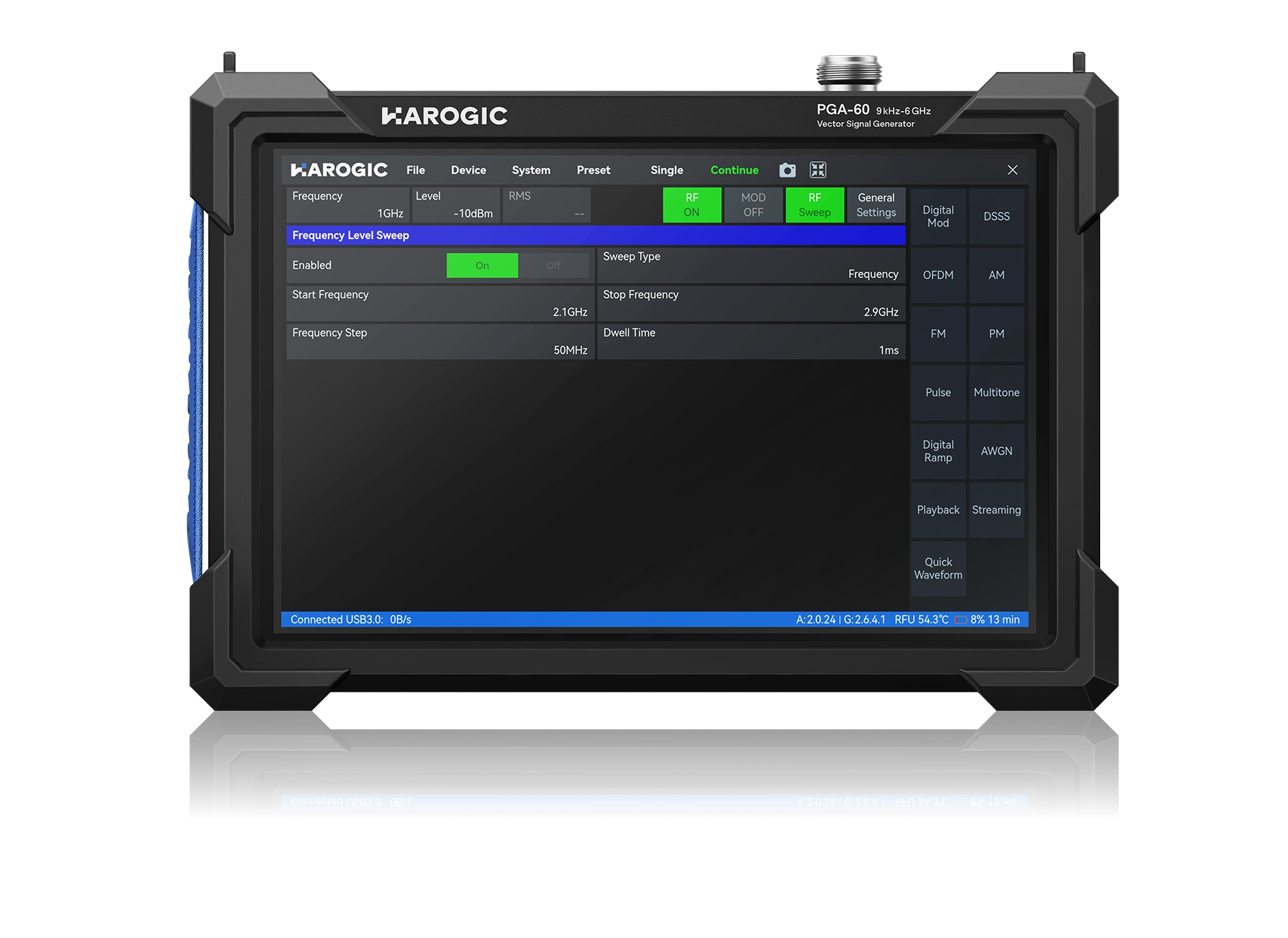

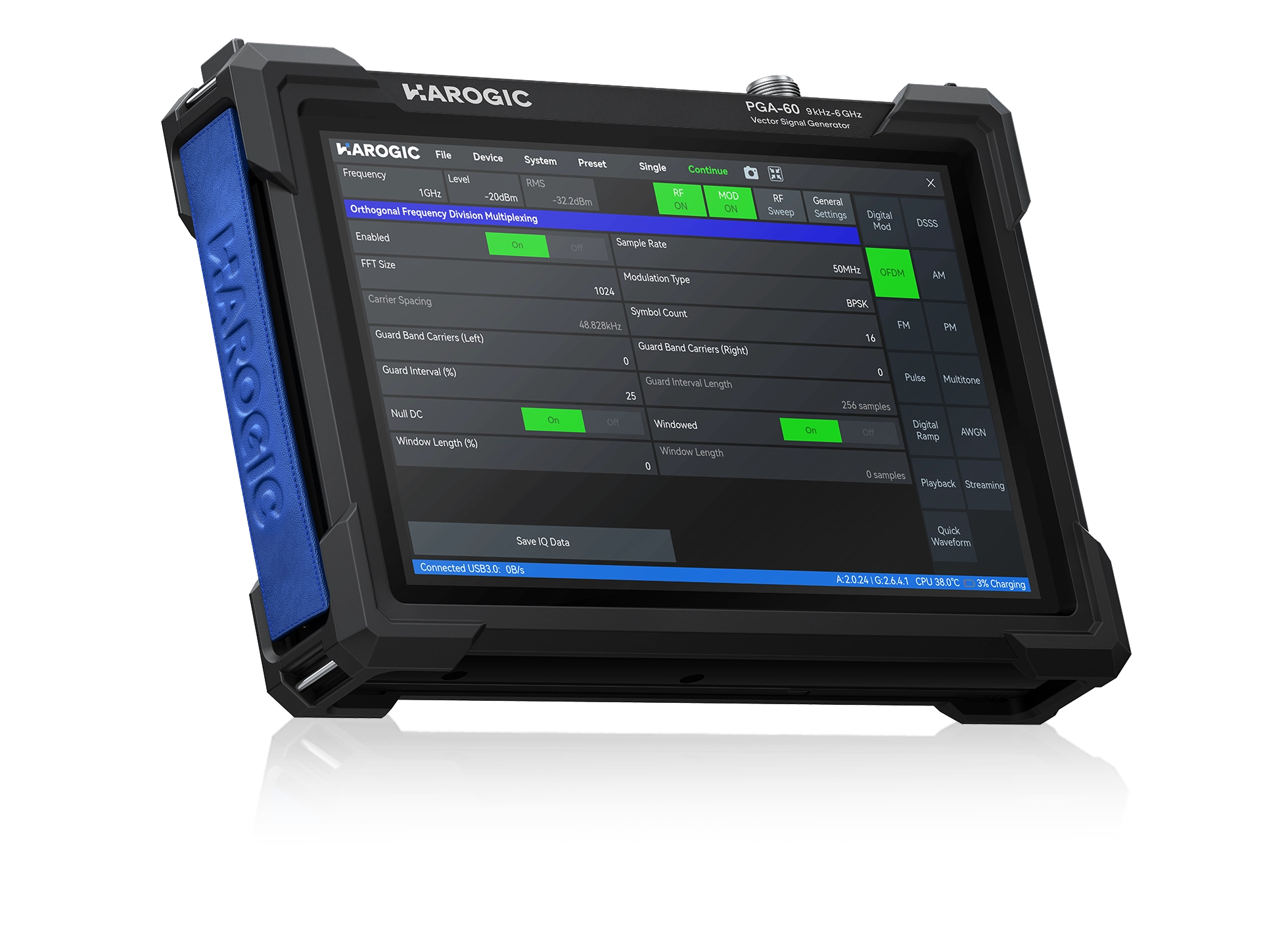

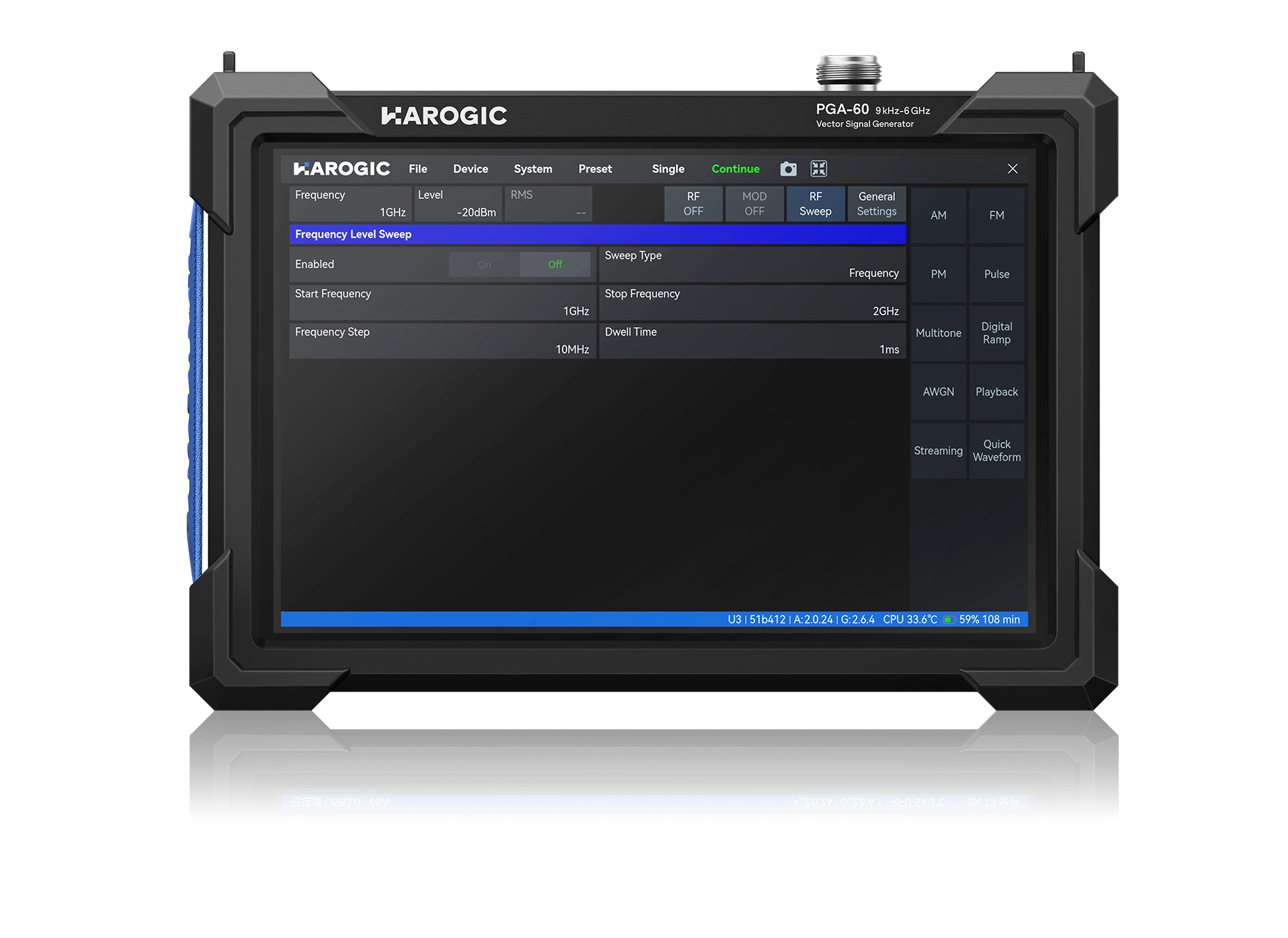

The PGA-60 is a 1.4 kg handheld vector signal generator with frequency from 9 kHz to 6 GHz. It offers a standard instanous bandwidth of 100 MHz and 50 MHz of real-time streaming bandwidth. Featuring a 2.5-hour battery, it enables engineers to "generate without limits" during wireless maintenance, radar testing, and UAV simulation.
Products
Videos
Extend RF Boundaries: HAROGIC Launches New SGA-60 Vector Signal Generator
New Vector Signal Generator Unboxing
HAROGIC PXE-200 20 GHz Handheld Spectrum Analyzer: Built for Touch
MoreAvailable
Models
PGA-60
Model
Product Manual
Frequency
Phase Noise 1 GHz,
10 kHz offset
10 kHz offset
Maximum Output Level
Playback Bandwidth
Size,Weight
Start Price
PGA-60
9 kHz-6 GHz
-124 dBc/Hz
7 dBm-14 dBm
25 dBm (opt.)
25 dBm (opt.)
100 MHz
10.1", 1.4 kg
2,998 USD
Warning: Attempt to read property "ID" on bool in /www/wwwroot/www.harogic.com/wp-content/themes/enharogic/single-product.php on line 384
Options
Code
Option
Description
05
Internal high precision GNSS
built-in hardware
10
Medium power output
built-in hardware
