R1000 Series

KEY FACTS

Frequency range: 10 MHz to 6 / 9 / 20 / 40 GHz

High-performance superheterodyne receiver with up to 14 preselection filters

Phase noise at 1 GHz: <-110 dBc/Hz @ 10 kHz

Real-time bandwidth: 50 MHz / 100 MHz (opt.)

14-bit ADC, SFDR >70 dB

Built-in GNSS as standard, supporting GNSS-based frequency calibration

Integrated Raspberry Pi 5 for standalone deployment

Supports C/C++, C#, Python, MATLAB, Qt, LabVIEW, and GNU Radio

Supports Windows and Linux operating systems

Get a Quote

Benefits

Highlight

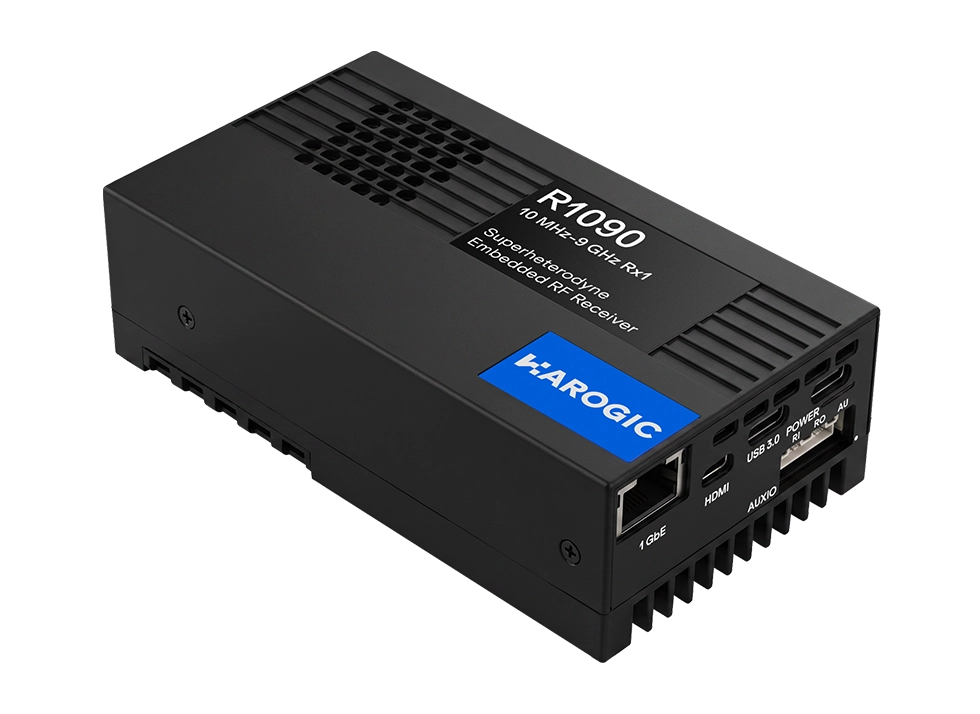

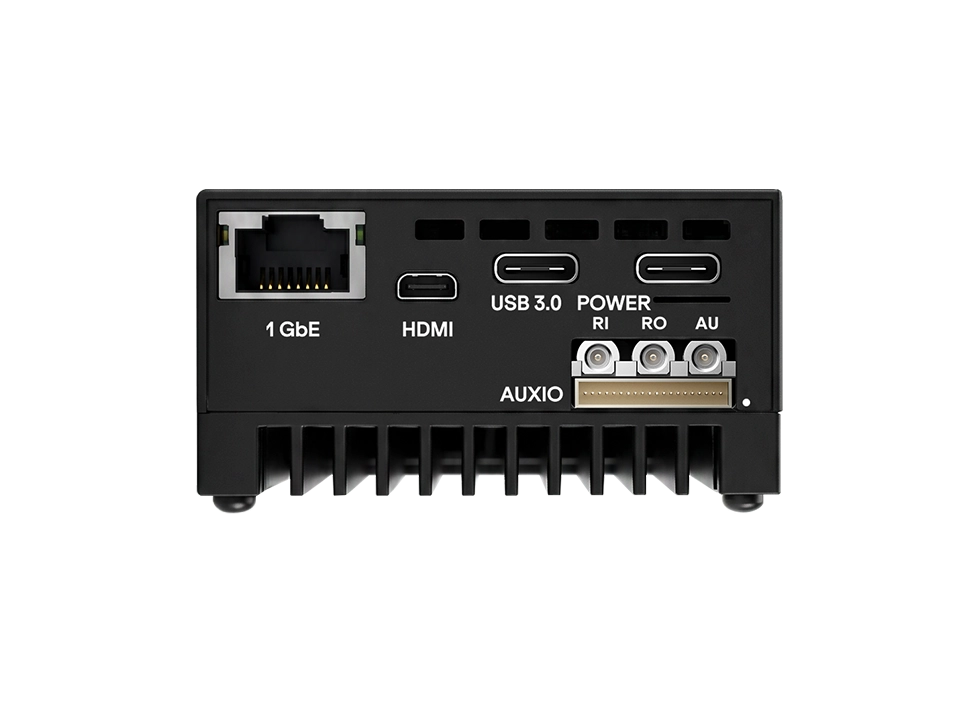

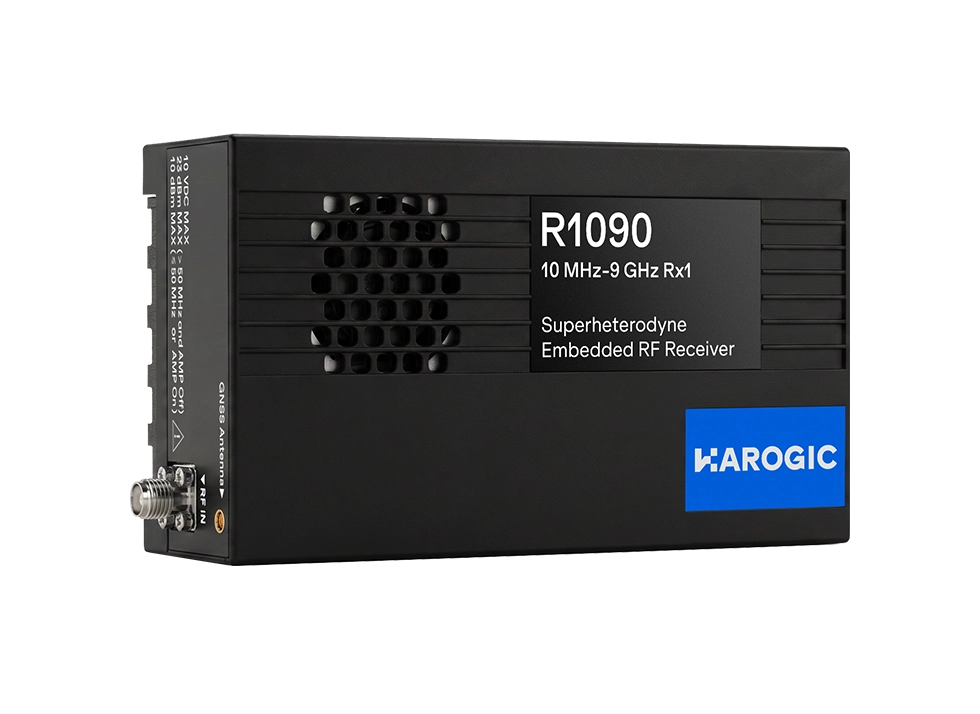

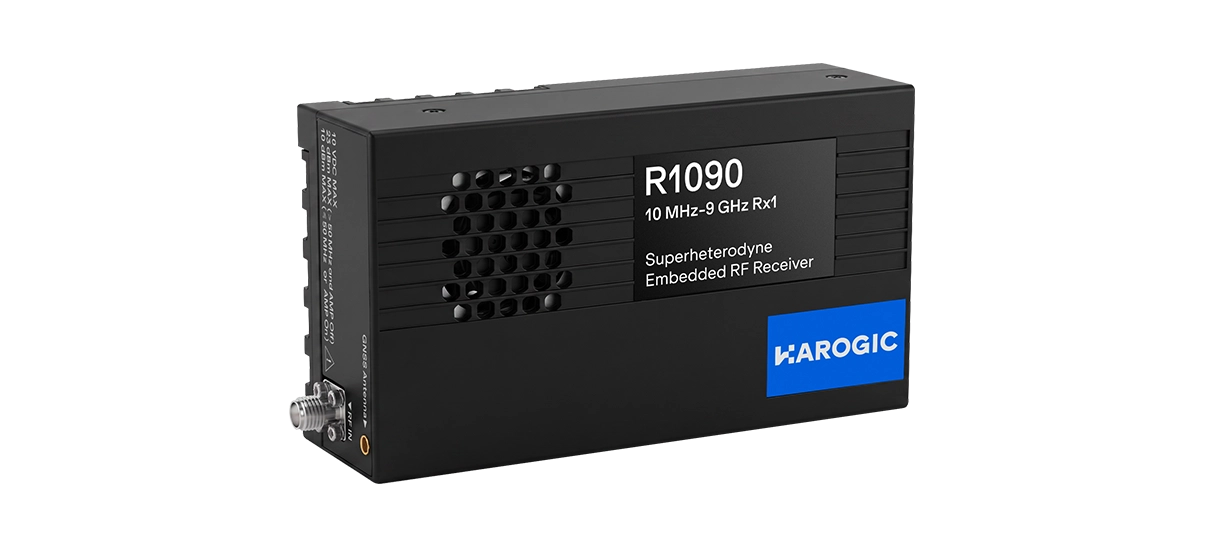

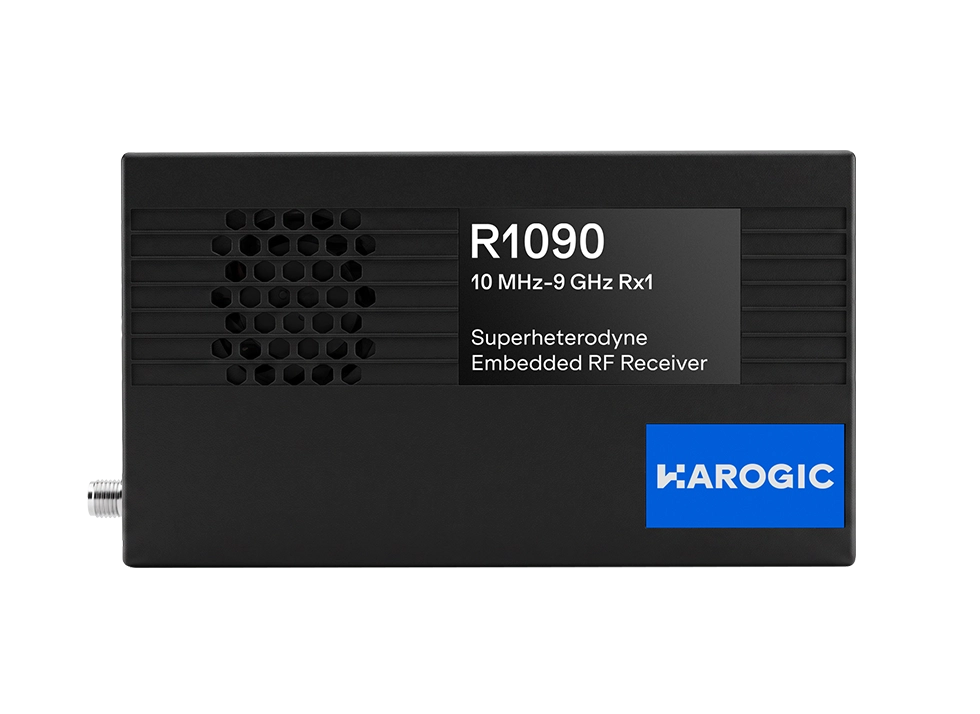

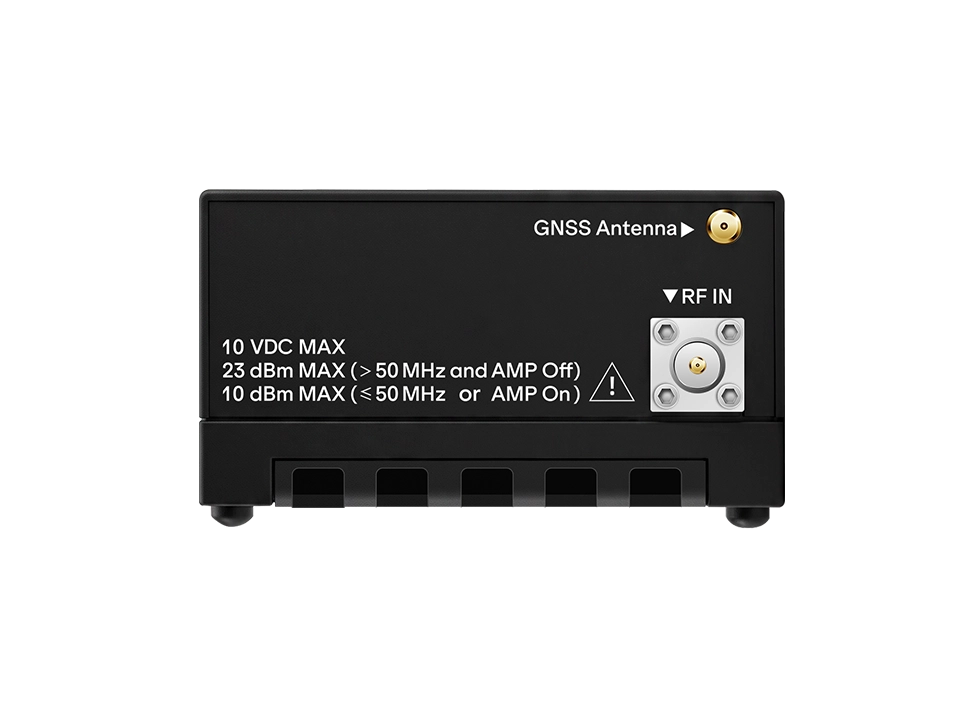

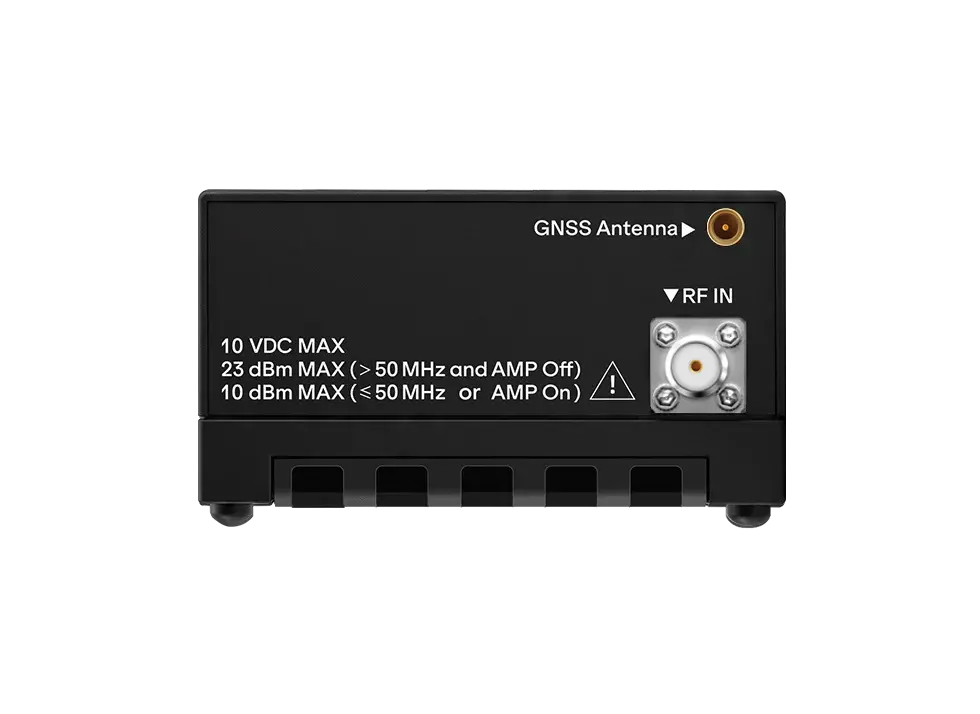

The HAROGIC R1000 Series integrates a single-channel, high-performance superheterodyne RF receiver and Raspberry Pi 5 in a compact enclosure to create an embedded RF receiver platform. Covering 10 MHz to 6 / 9 / 20 / 40 GHz, it provides 50 MHz real-time bandwidth as standard, expandable to 100 MHz. A unified API allows the device to serve as a high-quality IQ data source for a host computer or run RF signal acquisition, identification, processing, and control applications locally. It is ideal for distributed field deployment, RF system integration, distributed monitoring, and edge RF systems.
