Series
Overview

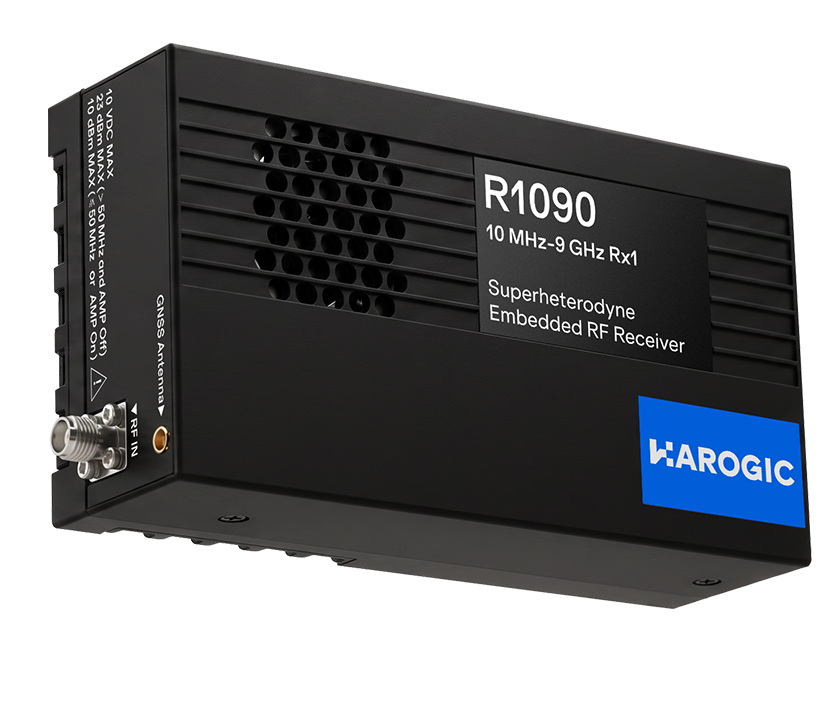

Embedded RF Receiver R1000 Series
The HAROGIC R1000 Series combines a single-channel high-performance superheterodyne RF receiver with Raspberry Pi CM5 in a compact enclosure. Covering 10 MHz to 6 / 9 / 20 / 40 GHz, it offers 50 MHz standard and 100 MHz optional real-time bandwidth. A unified HTRA API enables the same software workflow across models, supporting both host-connected IQ acquisition and standalone embedded applications for spectrum monitoring, distributed signal acquisition, edge processing and OEM deployment.
RF
receiver
Product Name
Frequency
Real-time Bandwidth
Noise Figure
Bus Interface
Processor
37682
10 MHz-6/9/20/40 GHz
50 / 100 MHz
6 dB @ 1 GHz
7 dB @ 9 GHz
14 dB @ 20 GHz
24 dB @ 40 GHz
7 dB @ 9 GHz
14 dB @ 20 GHz
24 dB @ 40 GHz
1 GbE
Raspberry Pi 5
0
of 3 Product comparison
Product
Comparison
Frequency
Analysis of bandwidth
1 GHz phase noise at 10 KHZ
Scanning speed (RBW=250kHz)
