Vector Signal Generator

9 kHz to 6 GHz

Series

Overview

USB vector signal generator

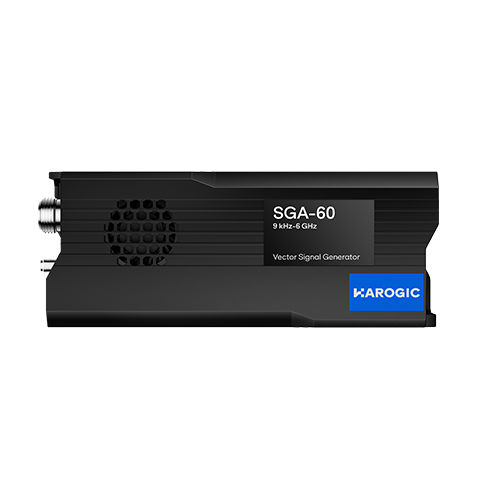

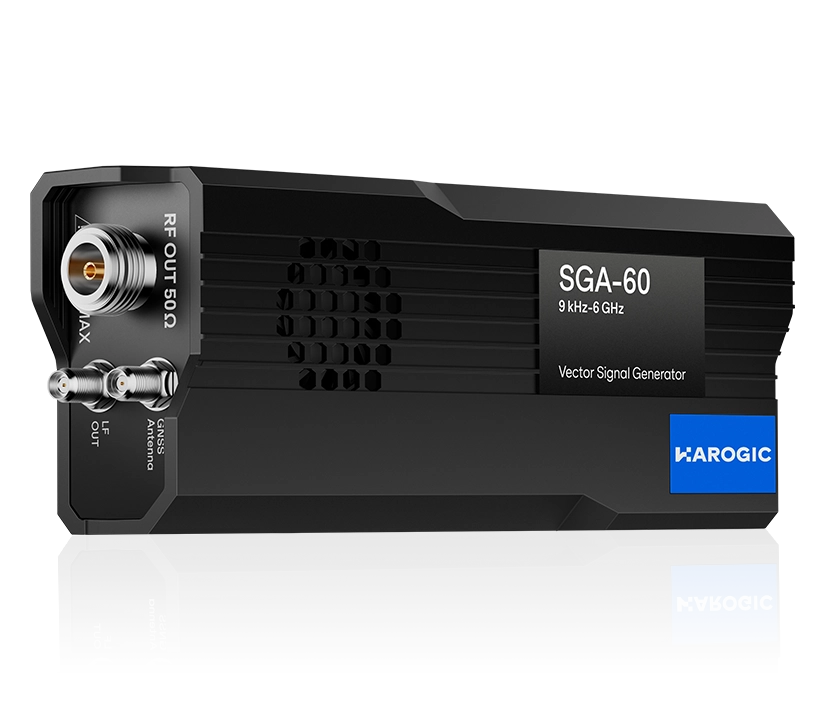

The SGA-60 is a vector signal generator with frequency from 9 kHz to 6 GHz. It offers a standard instanous bandwidth of 100 MHz and 50 MHz of real-time streaming bandwidth. It can output CW, AM/FM, digital modulated signal, frequency/amplitude sweep, chirp signal at affordable price.

USB

USB
vector signal generator

Product Name

Frequency

Phase Noise
1 GHz, 10 kHz Offset

Maximum
Output Level

Maximum
Streaming Bandwidth

Maximum
Playback Bandwidth

29146

9 kHz-6 GHz

-124 dBc/Hz

7 dBm-14 dBm

50 MHz

100 MHz

Product Name

Frequency

Phase Noise
1 GHz, 10 kHz Offset

Analysis
Bandwidth

System

Size,Weight

28071

9 kHz-4.5/6/9 GHz

-110 dBc/Hz

50/100 MHz

Linux

10.1", 1.6 kg

11785

9 kHz-9.5/20/40 GHz

-100 dBc/Hz

100 MHz

Linux

10.1", 2.5 kg

5849

9 kHz-9.5/20/40 GHz

-100 dBc/Hz

100 MHz

Windows11

8.8", 1.1 kg

195

9 kHz-9.5/20/40 GHz

-100 dBc/Hz

100 MHz

Linux

10.1", 1.5 kg

0 of 3 Product comparison

Product

Comparison

Frequency

Analysis of bandwidth

1 GHz phase noise at 10 KHZ

Scanning speed (RBW=250kHz)
