USB Vector Network Analyzer

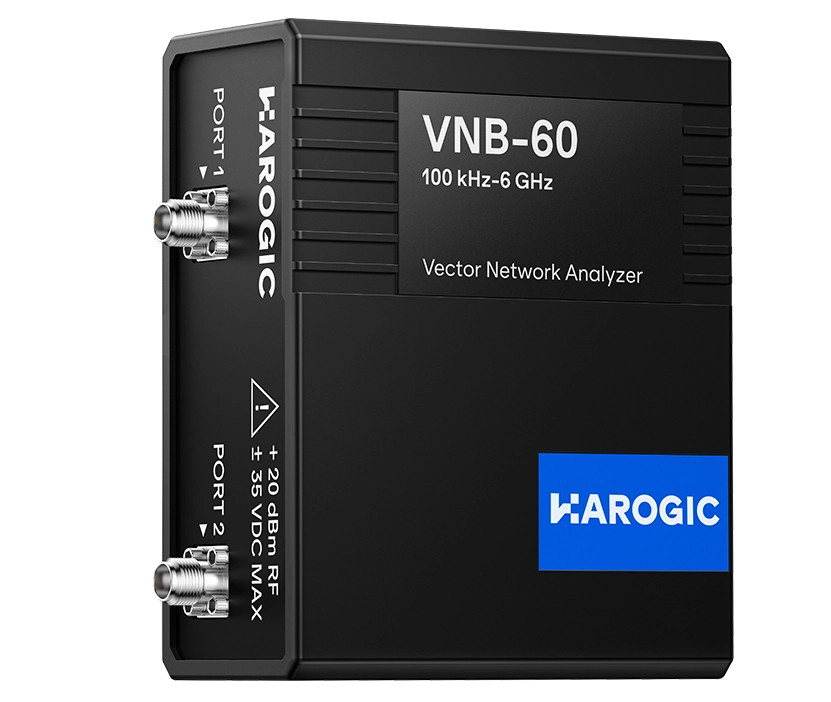

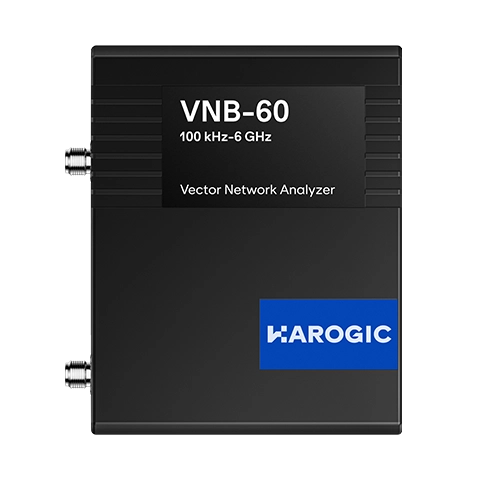

HAROGIC VNB-60 is a dual-port USB vector network analyzer covering 100 kHz to 6 GHz and supporting full S-parameter measurements, including S11, S12, S21, and S22. It features high-performance directional couplers with an effective directivity of ≥40 dB, a typical dynamic range of 100–120 dB, an IF bandwidth from 15 Hz to 75 kHz, and a sweep speed of up to 150 μs per point at 75 kHz IFBW. Its 50 Ω RF ports use female SMA connectors, with an output power range of −35 dBm to +5 dBm from 10 MHz to 6 GHz. Both manual and electronic calibration are supported, including use with the ECB-60 electronic calibration module and phase-stable, amplitude-stable test cables. Together with VNStudio software, it provides sweep configuration, calibration, Smith chart, VSWR and phase displays, as well as CSV and S2P data export. It is suitable for measuring the network parameters of RF components such as filters, amplifiers, cables, and antennas.
Handheld Vector Network Analyzer

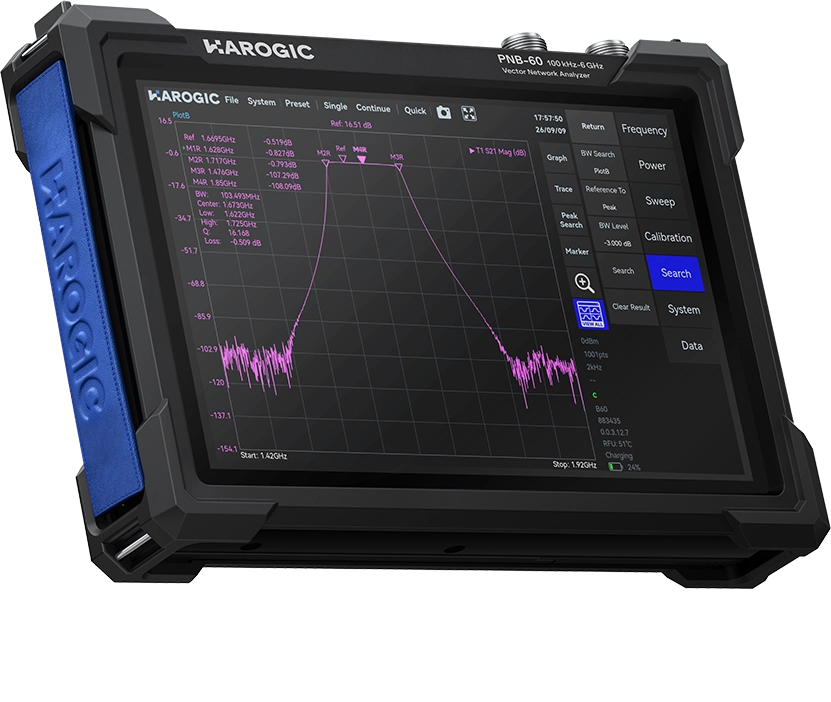

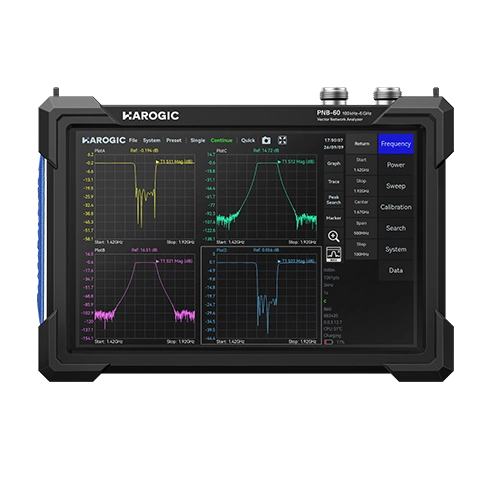

The HAROGIC PNB-60 is a handheld vector network analyzer covering a frequency range of 100 kHz to 6 GHz. Its dual-port S-parameter measurement architecture combines high performance with portability. Equipped with high-performance directional couplers, it delivers an effective directivity of ≥40 dB. Its professional receiver design provides a dynamic range of up to 100–120 dB and typical trace noise of ≤0.003 dB RMS. Full S-parameter measurements—including S11, S12, S21, and S22—are supported.Weighing only 1.4 kg, the PNB-60 features a 10.1-inch high-resolution multi-touch display for a smooth, intuitive user experience. It offers a typical battery life of five hours and supports operation from a portable power bank, making it easy to deploy for laboratory R&D, field installation, and on-site maintenance.Combined with the ECB-60 electronic calibration module, amplitude- and phase-stable cables, and VNStudio software, the PNB-60 provides a complete test solution. It also supports SCPI commands and remote control over LAN, making RF component testing more efficient, reliable, and portable.
