SGA-60
KEY FACTS
Frequency range: 9 kHz to 6 GHz
Maximum level output：7 dBm to 14 dBm
Minimum level output: <-100 dBm
Level output up to 25 dBm (opt.)
1 GHz phase noise: < -124 dBc/Hz@10 kHz
Maximum real-time bandwidth: 50 MHz
Maximum playback output bandwidth: 100 MHz
0 dBm output harmonics: <-50 dBc (typ.)
Get a Quote
Benefits
Highlight

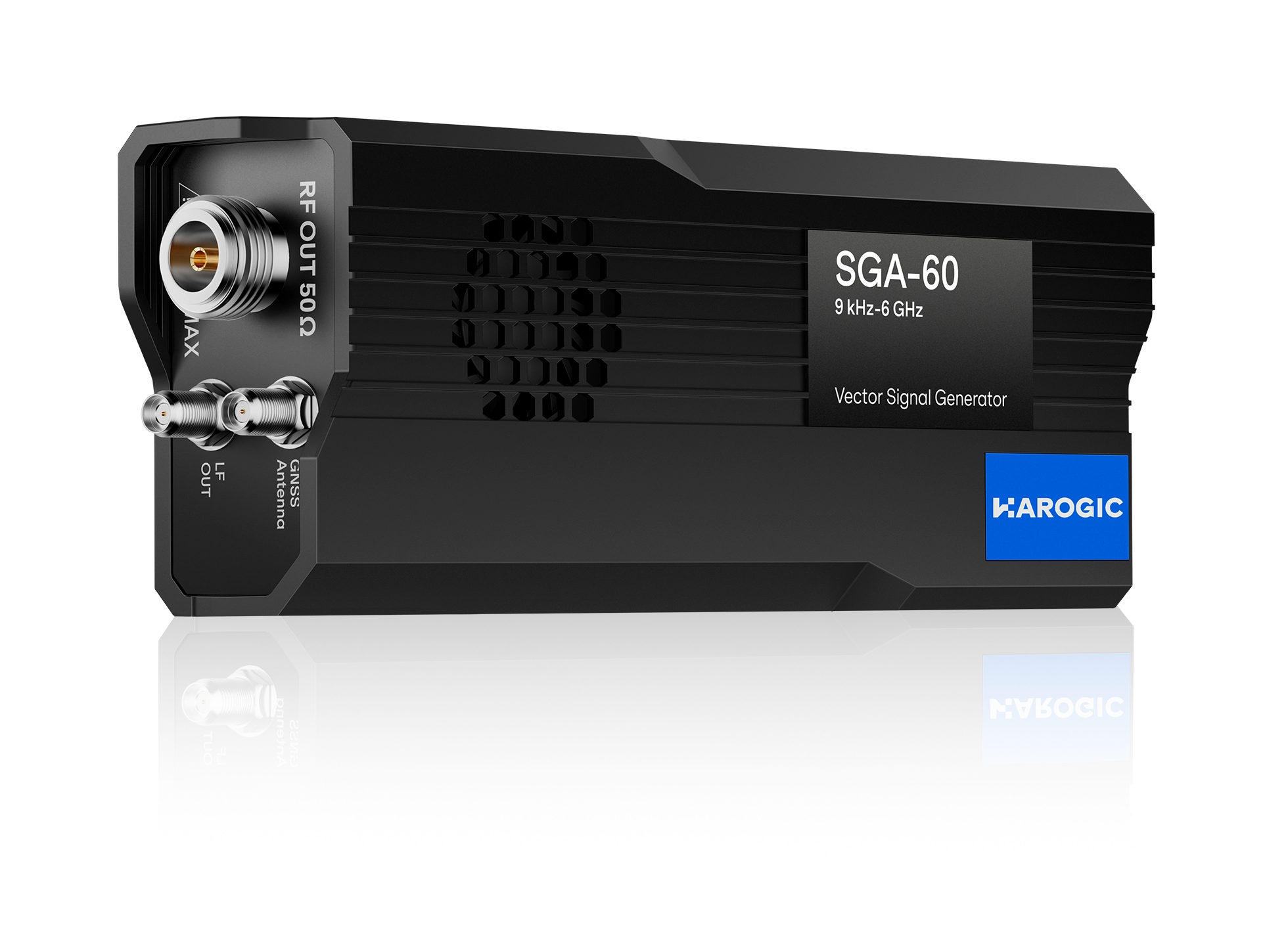

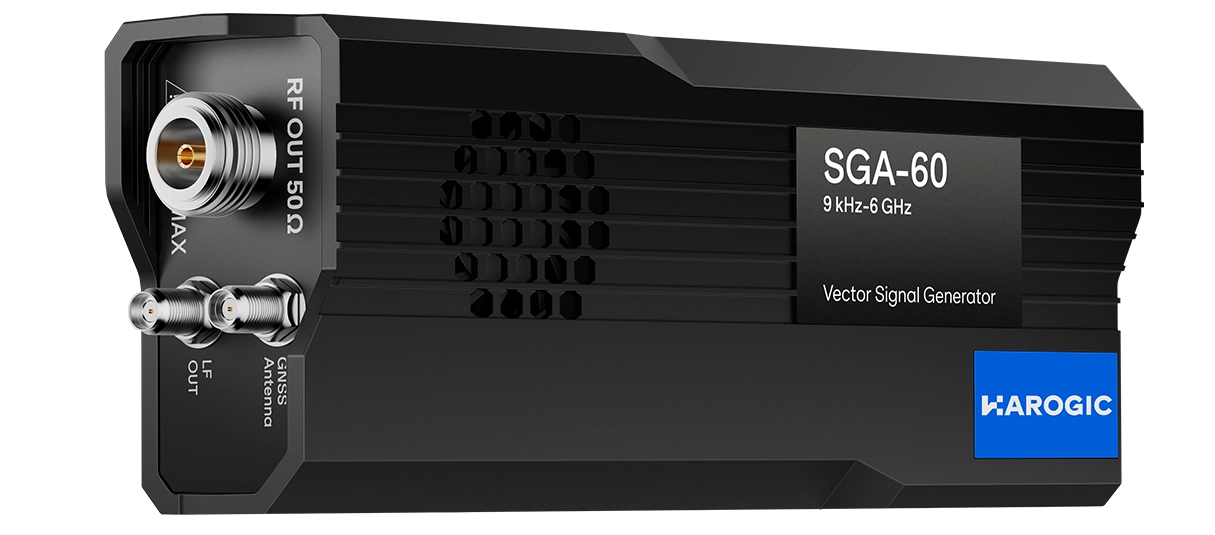

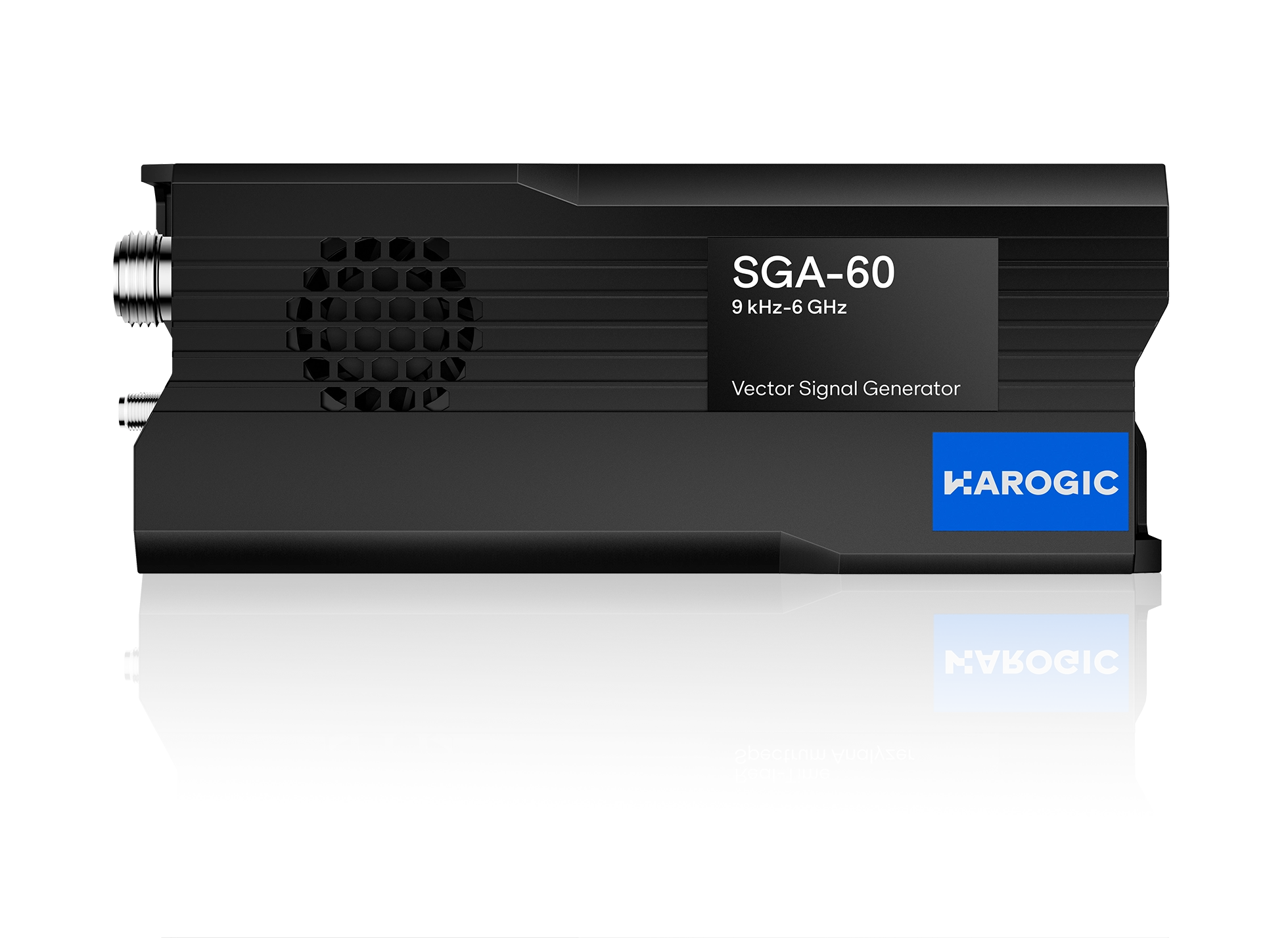

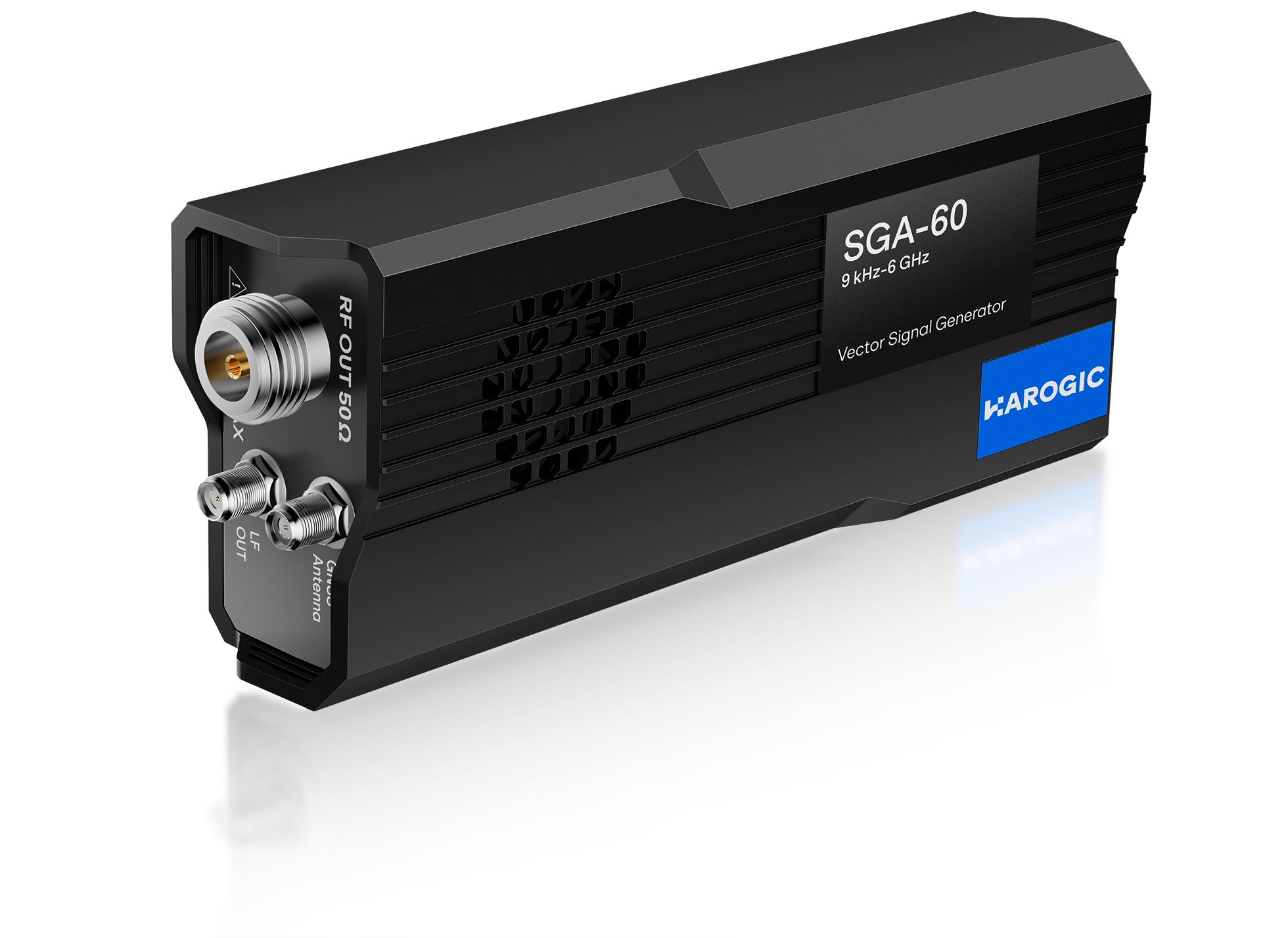

The SGA-60 is a vector signal generator with frequency from 9 kHz to 6 GHz. It offers a standard instanous bandwidth of 100 MHz and 50 MHz of real-time streaming bandwidth. It can output CW, AM/FM, digital modulated signal, frequency/amplitude sweep, chirp signal at affordable price.
Products
Videos
Extend RF Boundaries: HAROGIC Launches New SGA-60 Vector Signal Generator
RF Performance Within Reach: HAROGIC Launches New PXN Series Handheld Spectrum Analyzer
HAROGIC PXE-200 20 GHz Handheld Spectrum Analyzer: Built for Touch
MoreAvailable
Models
NEW SGA-60
Model
Product Manual
Frequency
Phase Noise 1 GHz,
10 kHz offset
10 kHz offset
Maximum Output Level
Real-time bandwidth
Playback bandwidth
Price
SGA-60
9 kHz-6 GHz
-124 dBc/Hz
7 dBm-14 dBm
50 MHz
100 MHz
2,298 USD
Options
Code
Option
Description
01
Built-in OCXO reference clock
built-in hardware
40
T1 temperature class
built-in hardware
41
T2 temperature class, only available for core
built-in hardware
