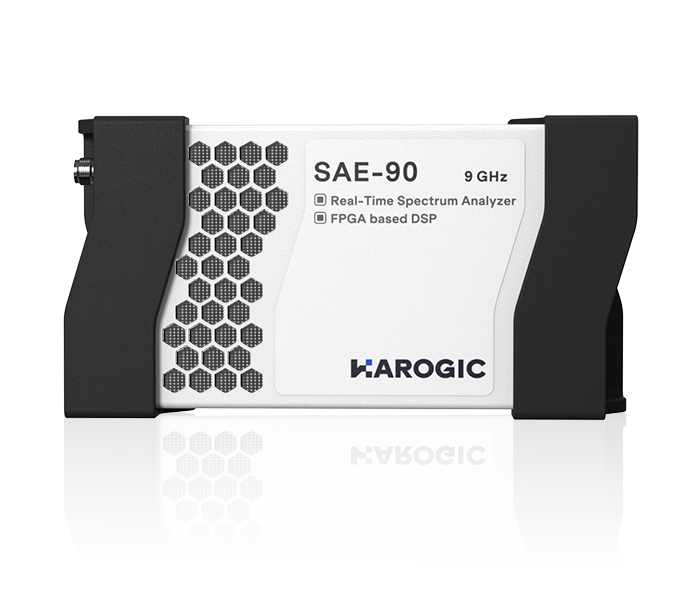

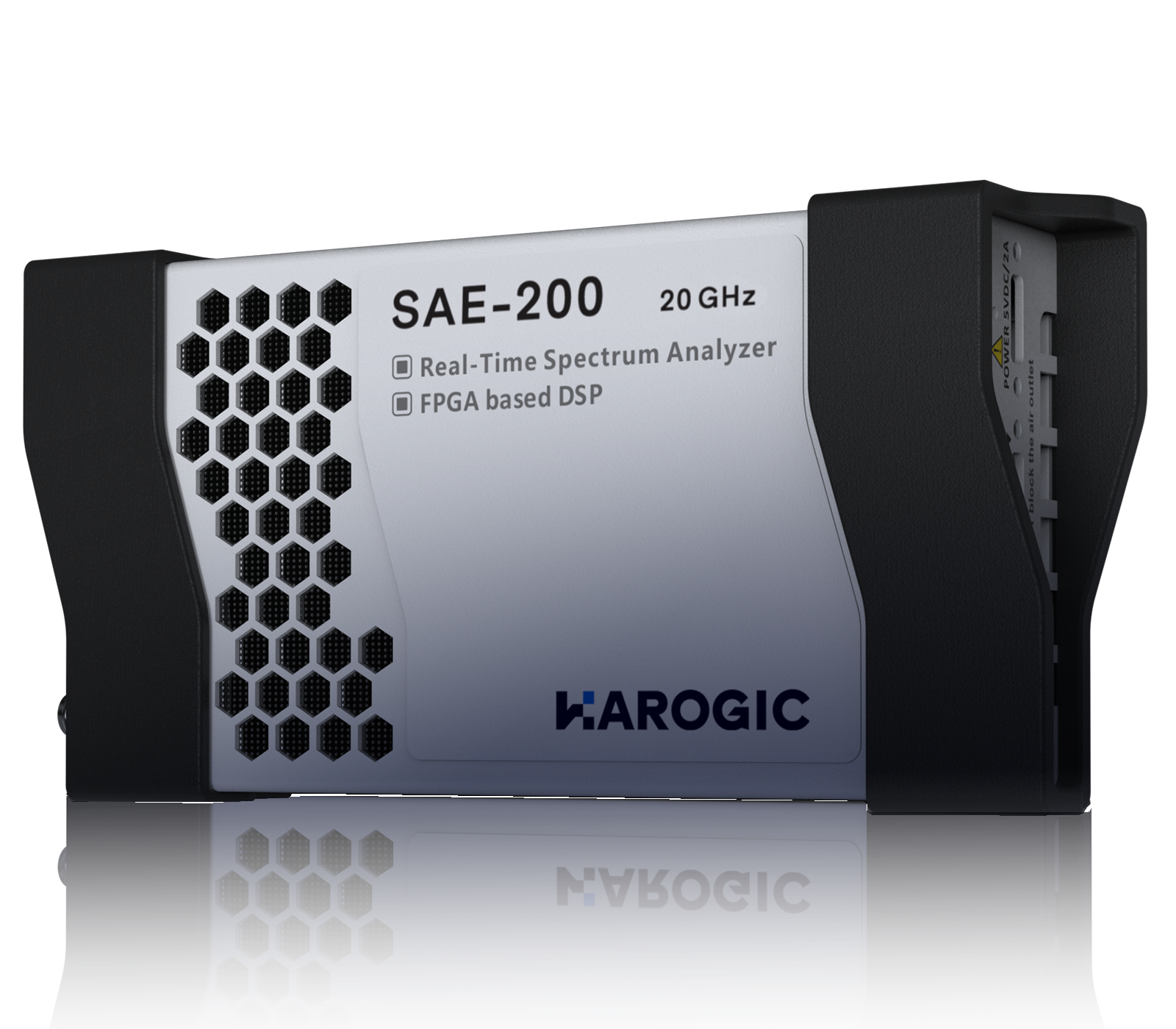

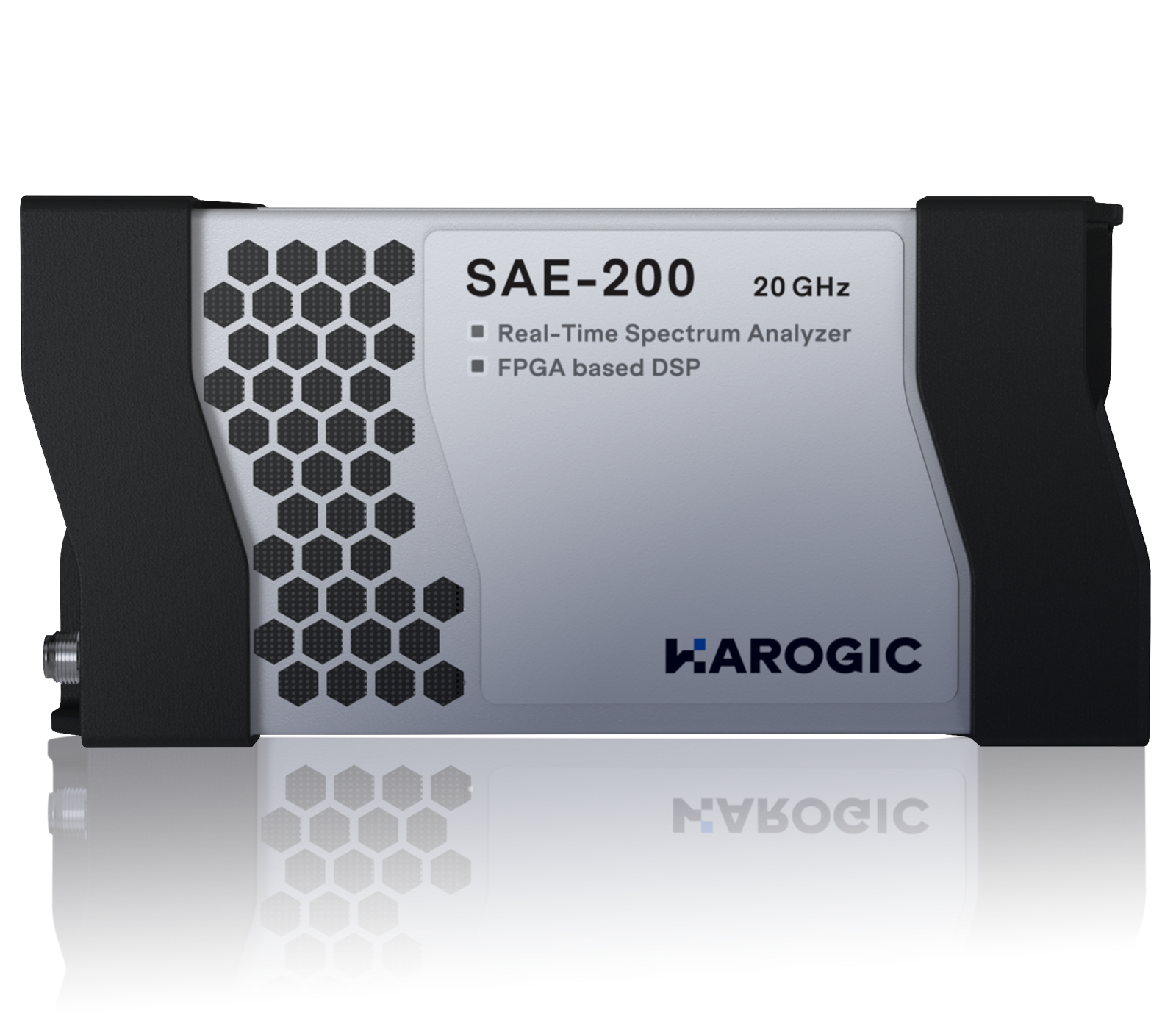

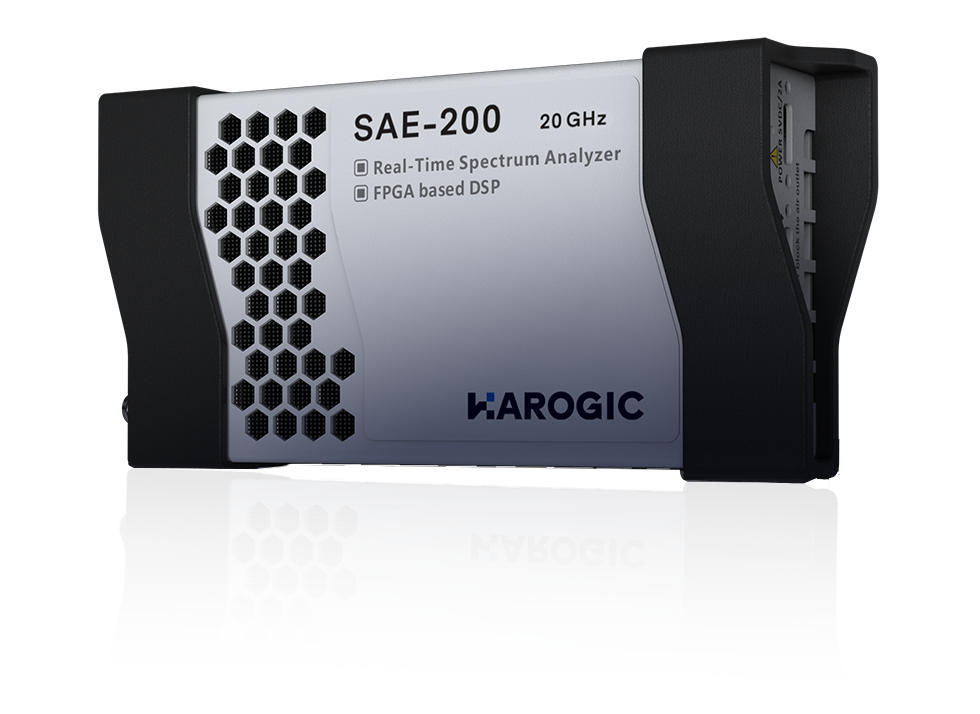

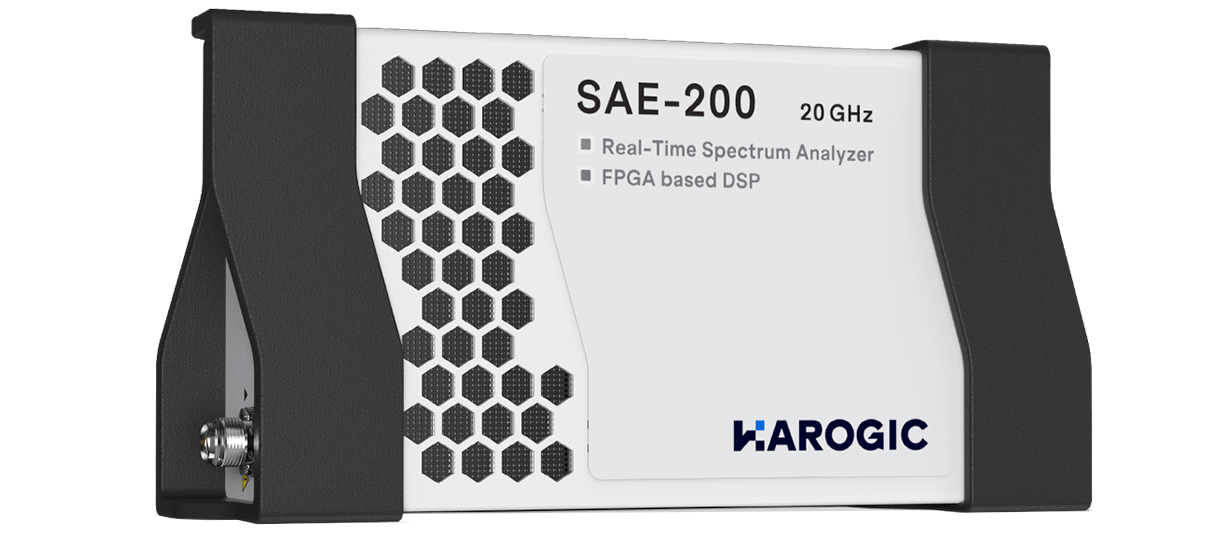

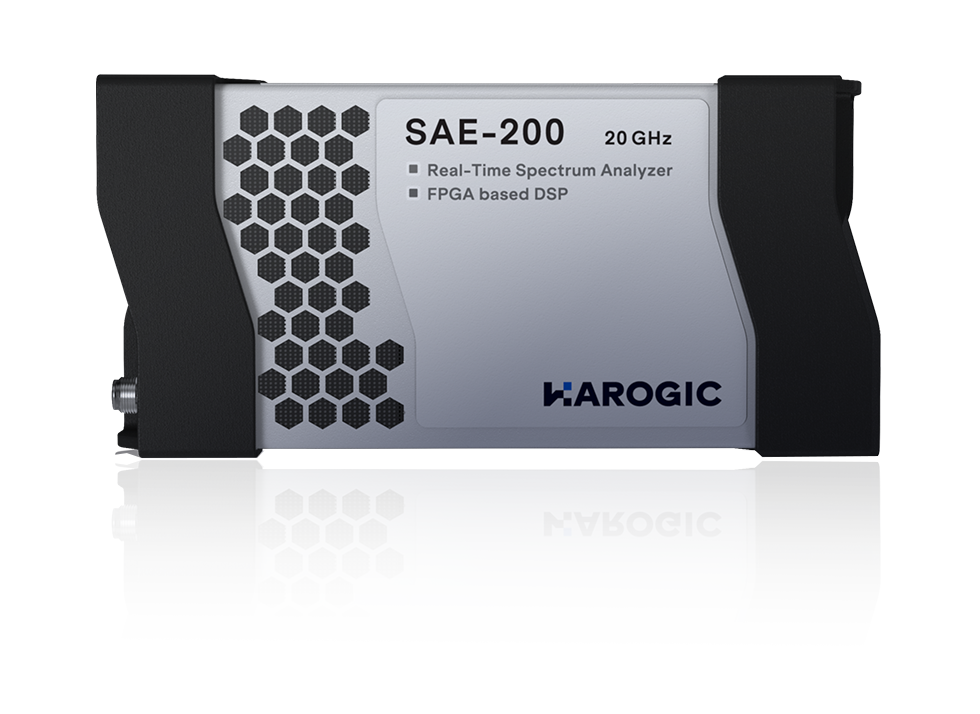

SAE Series
KEY FACTS
Frequency Range: 9 kHz to 9.5/20 GHz
1 GHz DANL: -166.3 dBm/Hz
1 GHz Phase Noise: -100 dBc/Hz@10 kHz
Analysis Bandwidth: Up to 100 MHz

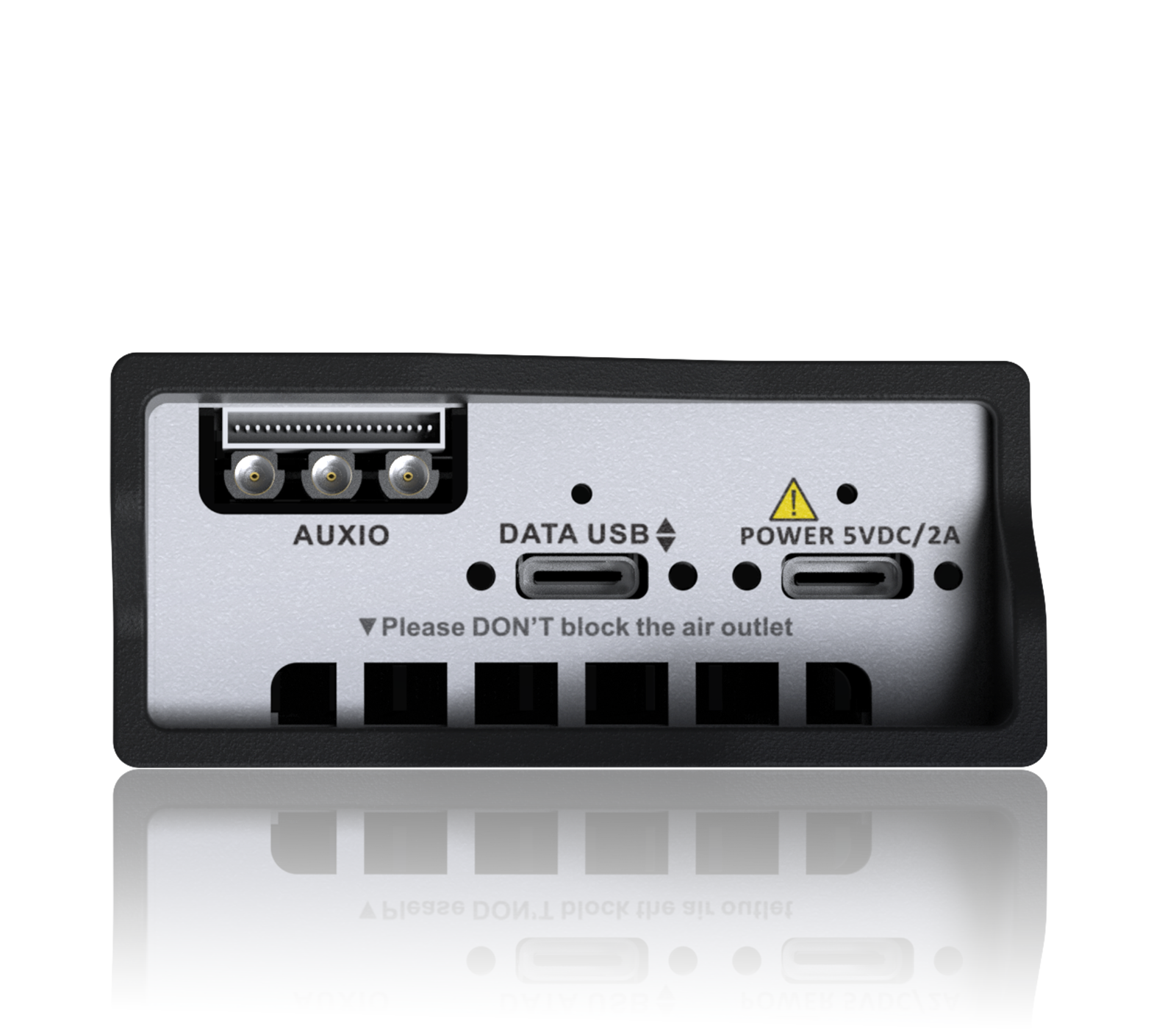

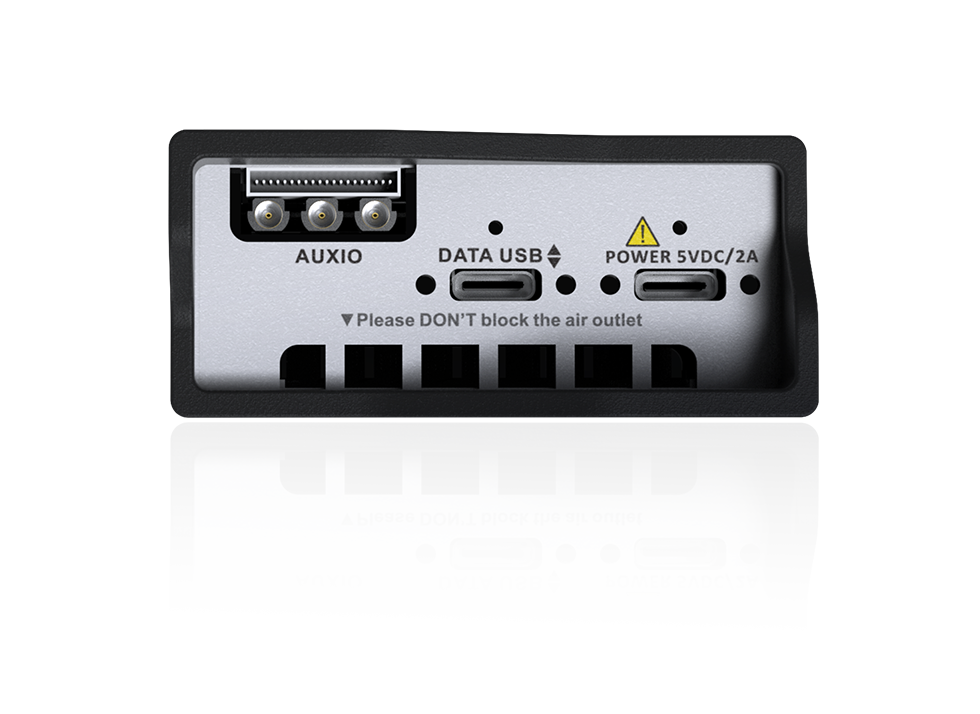

USB3.0/2.0 Type C Interface
Highly Compatible API Interface
ARM and X86 Processor are supported
Linux and Windows operating systems are supported
Get a Quote
Benefits
Highlight
SAE series offers cutting-edge RF spectrum analysis in a compact, USB-powered package. Covering 9 kHz up to 20 GHz, it features a remarkable 100 MHz analysis bandwidth and ultra-fast 1.2 THz/s sweep speed. With superior image suppression and IF rejection, it's an ideal portable tool for precise and efficient spectrum analysis, compatible with both Linux and Windows operating systems.
Products
Videos
HAROGIC Quick Start Guide for SA Series
HAROGIC SAStudio4 Phase Noise Measurement Guide

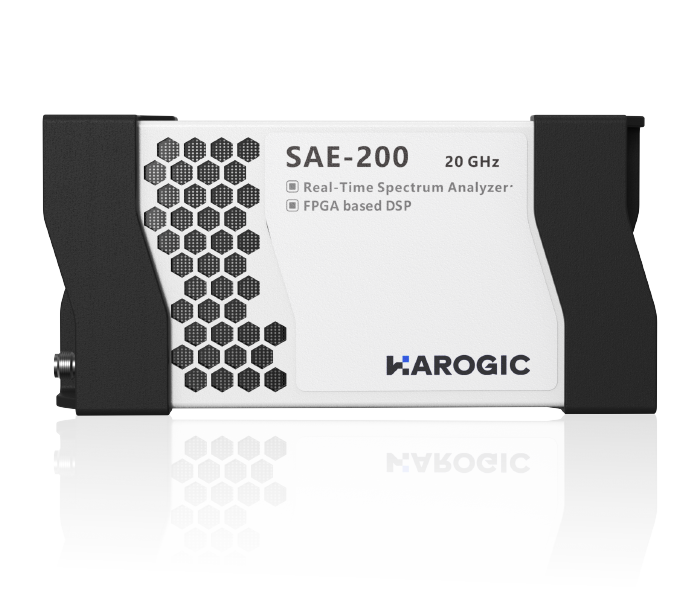

The Signal Path Review: Exploring Harogic SAE-200 20GHz Real-Time Performance
MoreAvailable
Models
SAE SERIES
Model
Product Manual
Frequency
Phase Noise 1 GHz,
10kHz offset
10kHz offset
DANL 1 GHz,
Amp On
Amp On
Analysis Bandwidth
Sweep Speed
RBW=250 kHz
RBW=250 kHz
Price
Options
Code
Option
Descriptin
01
Built-in OCXO Reference Clock
Built-in Hardware
05
Internal high precision GNSS
Built-in Hardware
06
Build-in GNSS disciplined reference clock
Built-in Hardware
20
MUXIO IO Board
Accessory
21
External GNSS
Accessory
22
External High Precision GNSS
Accessory
23
External GNSS Disciplined OCXO Reference Clock
Accessory
34
External omnidirectional antenna, 400MHz to 8000MHz, Gain<2dBi
Accessory
35
External active directional antenna, frequency range: 0.5 to 10 GHz
Gain: < 5 dBi (amp off); < 25 dBi(amp on)
Gain: < 5 dBi (amp off); < 25 dBi(amp on)
Accessory
40
T1 Temperature Class
Built-in Hardware
41
T2 Temperature Class, Only Available for Core
Built-in Hardware
71
Basic Digital Modulation Analysis
Software
72
Pulse detection
Software
