NXN Series
KEY FACTS
Frequency Range: 9 kHz to 4.5/6.3/8.5/40 GHz
1 GHz DANL: -158 dBm/Hz
1 GHz Phase Noise: -107.5 dBc/Hz@10 kHz
Analysis Bandwidth: 6.25/25/100 MHz

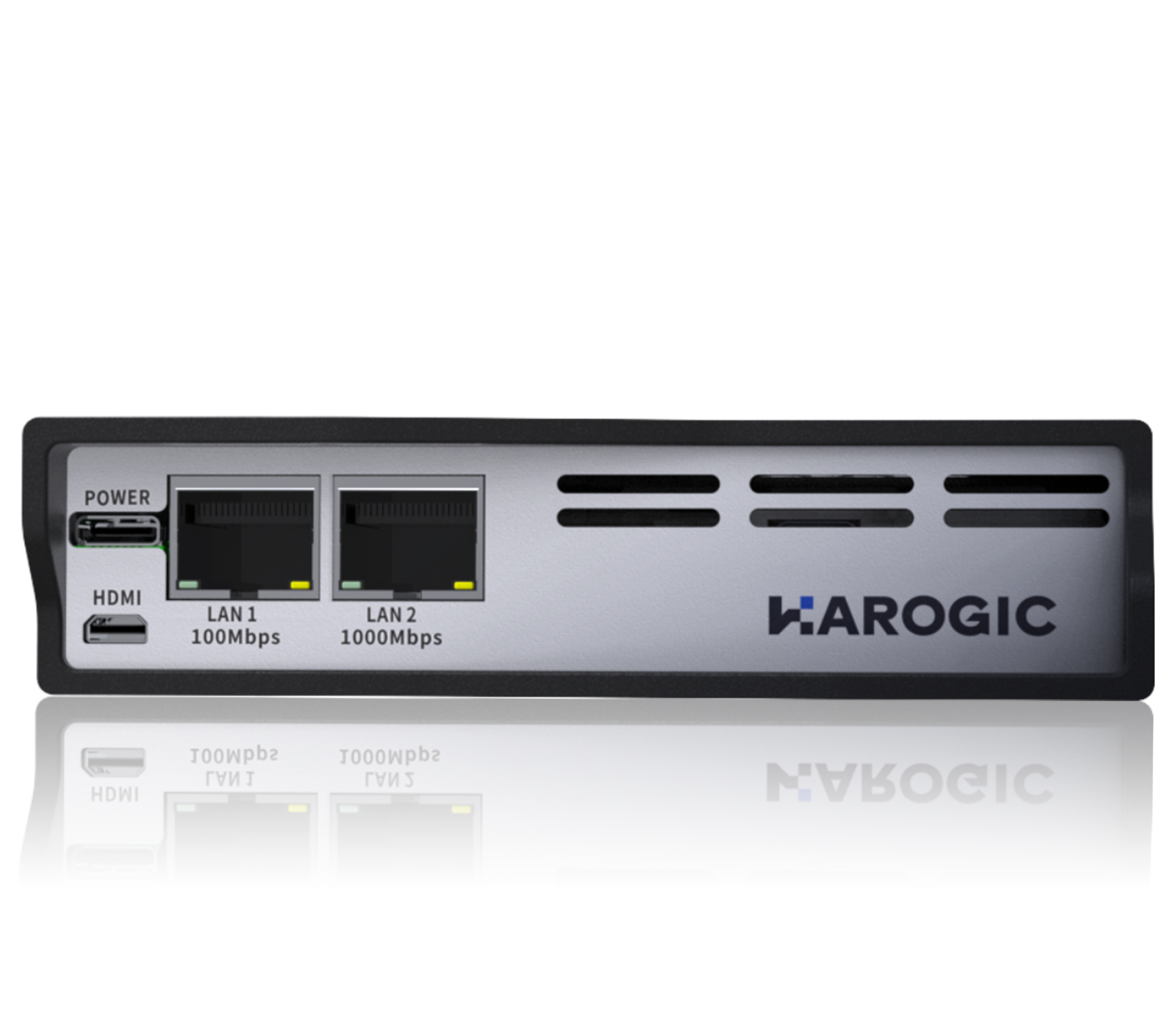

1000M/100M Ethernet Interface
Highly Compatible API Interface
Linux and Windows operating systems are supported
Get a Quote
Benefits
Highlight

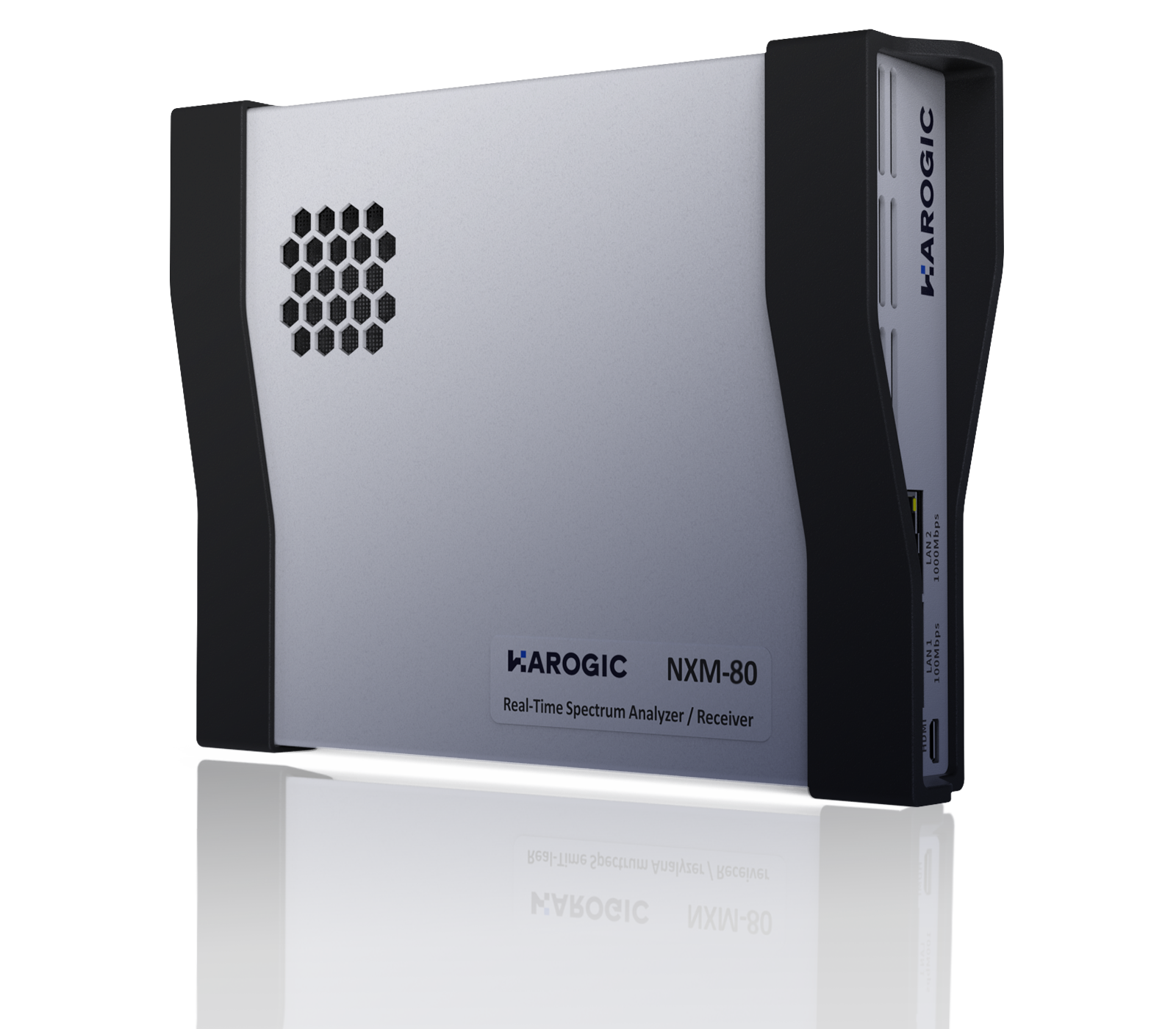

NXN series is a versatile and precise tool for real-time spectrum analysis, covering 9 kHz up to 6.3 GHz. It boasts a 6.25 MHz analysis bandwidth and swift 69 GHz/s sweep speed. With a dynamic range of -160 dBm/Hz and robust phase noise performance at -110 dBc/Hz, it ensures accurate and reliable measurements. Ideal for various demanding applications, its compact size and GNSS support make it a dependable choice for professionals on the go.
Products
Videos
HAROGIC Quick Start Guide for NX Series
HAROGIC SAStudio4 Phase Noise Measurement Guide
How to Use API With HAROGIC Model
MoreAvailable
Models
NXN SERIES
Model
Product Manual
Frequency
Phase Noise 1 GHz,
10kHz offset
10kHz offset
DANL 1 GHz, ，
Amp On
Amp On
Analysis Bandwidth
Sweep Speed
Price
Options
Code
Option
Description
01
Built-in OCXO Reference Clock
Built-in Hardware
02
Built-in Signal Generator
Built-in Hardware
05
Internal high precision GNSS
Built-in Hardware
06
Build-in GNSS disciplined reference clock
Built-in Hardware
20
MUXIO IO Board
Accessory
21
External GNSS
Accessory
22
External High Precision GNSS
Accessory
23
External GNSS Disciplined OCXO Reference Clock
Accessory
34
External omnidirectional antenna, 400MHz to 8000MHz, Gain<2dBi
Accessory
35
External active directional antenna, frequency range: 0.5 to 10 GHz
Gain: < 5 dBi (amp off); < 25 dBi(amp on)
Gain: < 5 dBi (amp off); < 25 dBi(amp on)
Accessory
40
T1 Temperature Class
Built-in Hardware
41
T2 Temperature Class, Only Available for Core
Built-in Hardware
71
Basic Digital Modulation Analysis
Software
72
Pulse detection
Software
