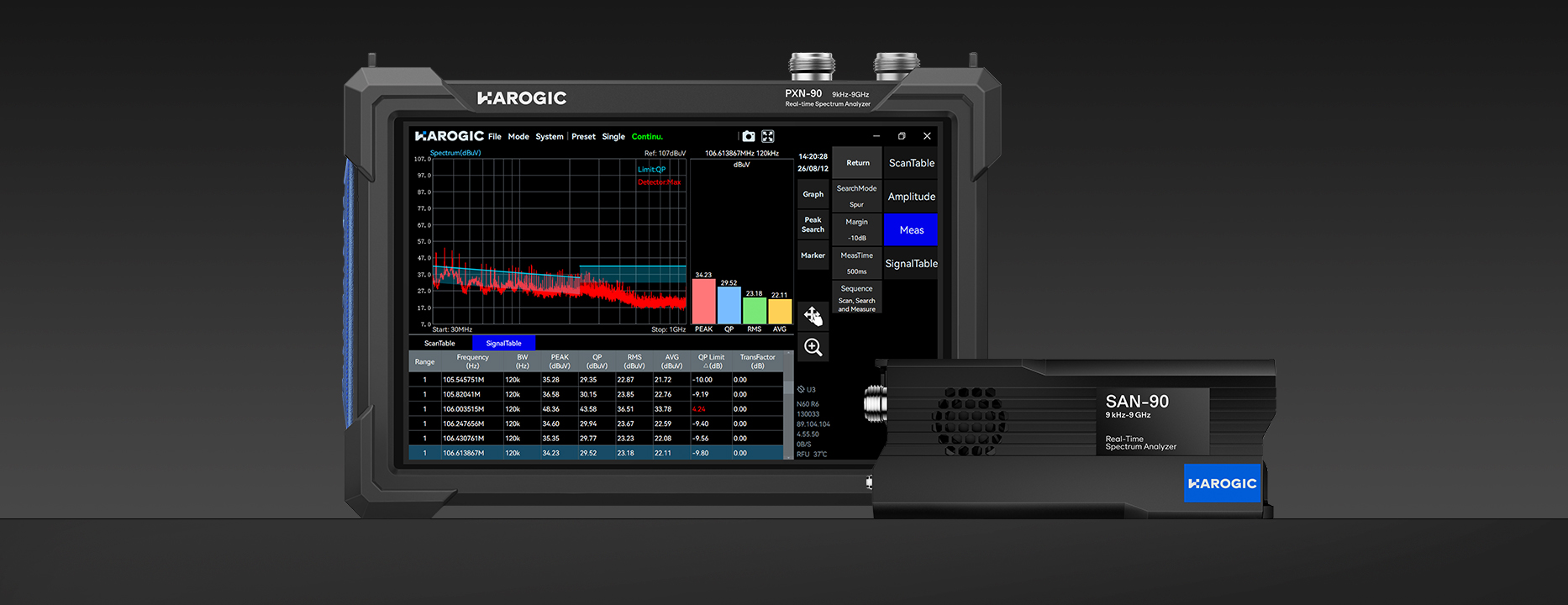

Booking third-party accredited laboratories for EMI certification is both costly and time-consuming. Failing a certification test at the final stage often leads to expensive redesigns and costly market delays. To bridge the gap between early R&D design and final certification, HAROGIC has officially introduced its EMI Pre-Compliance Testing Software, bringing certification-grade testing precision and high efficiency directly to the engineer’s bench.

The Pre-Compliance Challenge: Speed vs. Accuracy

Traditional pre-compliance setups using standard spectrum analyzers often force engineers to compromise. Slow sweep speeds using Quasi-Peak (QP) detectors create testing bottlenecks, while instruments with high noise floors risk missing weak parasitic emissions.

Designed to eliminate these exact pain points, HAROGIC’s new solution combines high RF performance with a streamlined, automated workflow, empowering teams to identify, debug, and resolve EMI issues early in the development cycle.

Key Highlights of the HAROGIC EMI Pre-Compliance System

1. Full-Spectrum Coverage & Hardcore Sensitivity

• Ultra-Wide Frequency Range: Covering 9 kHz to 40 GHz (with an optional DC coupling mode from 0 Hz to 4.5 GHz), the system effortlessly handles everything from low-frequency conducted emissions to high-order millimeter-wave harmonics.

• Extreme Low Noise Floor: Featuring a Displayed Average Noise Floor (DANL) as low as -168 dBm/Hz at 1 GHz, the system captures faint, hidden interference signals that standard analyzers miss.

• Standard-Compliant Filtering: Built-in CISPR-standard RBWs (200 Hz / 9 kHz / 120 kHz / 1 MHz) ensure that pre-compliance measurements strictly align with accredited third-party lab standards.

2. Advanced Detection & Parallel Measurement Efficiency

• Multi-Detector Parallel Measurement: Unlike conventional pre-compliance tools that require repeated scans for different detectors, the HAROGIC system supports simultaneous parallel measurement across Peak(PK), Quasi-Peak (QP), Average (AVG) and RMS. This dramatically speeds up scan times and offers performance that rivals high-end EMI receivers.

• Pre-Loaded Standard Library: The system comes pre-configured with over 100 international limit lines, including GB, FCC Part 15, CISPR, and IEC standards.

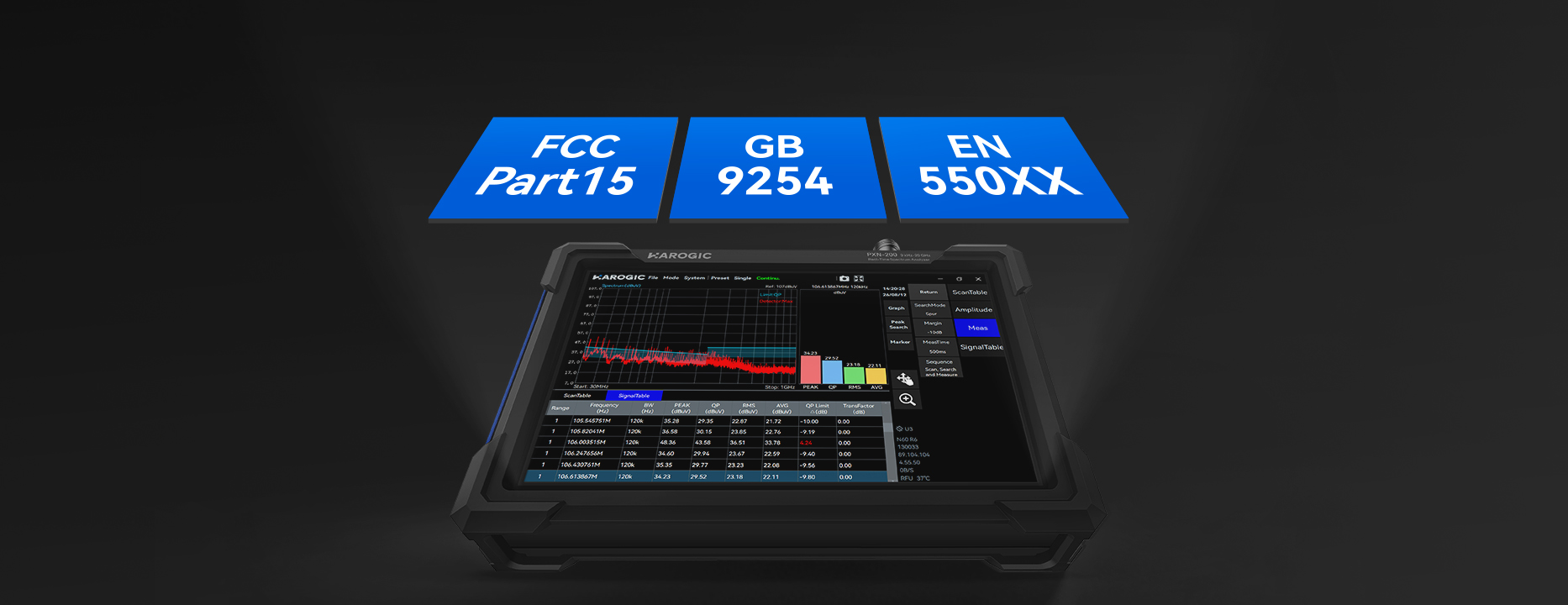

• Automated Limit Line & Margin Analysis: Real-time graphical overlays display limit lines and pass/fail margins instantly, eliminating tedious manual data comparison.

3. Automated Workflow Designed for Engineers

• Smart Segmented Sweeps: Flexible configurations allow engineers to customize RBWs, step sizes, and detectors across different frequency bands to optimize both accuracy and speed.

• One-Click Automated Sequence: A simple press starts the full automated sequence: Peak Initial Scan - Auto Peak Finding - QP/Average Final Measurement.

• Instant Documentation: Generate comprehensive, professional raw data exports (CSV) in under 1 minute.

De-Risking Your Product Launch

By integrating HAROGIC's EMI Pre-Compliance Testing System into the daily development workflow, engineering teams can debug emissions in real-time, drastically reduce lab re-testing fees, and move into official certification with total confidence.
