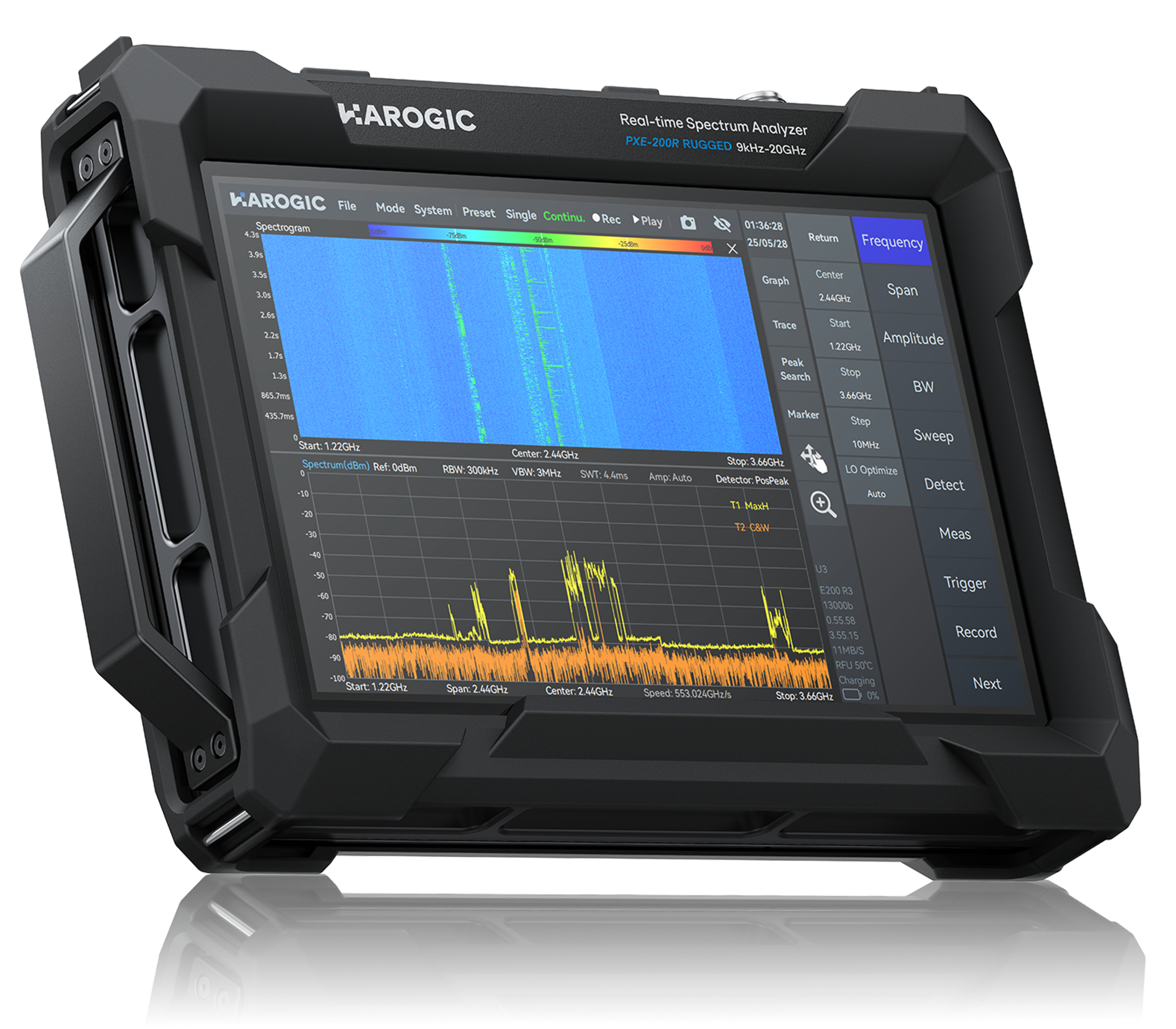

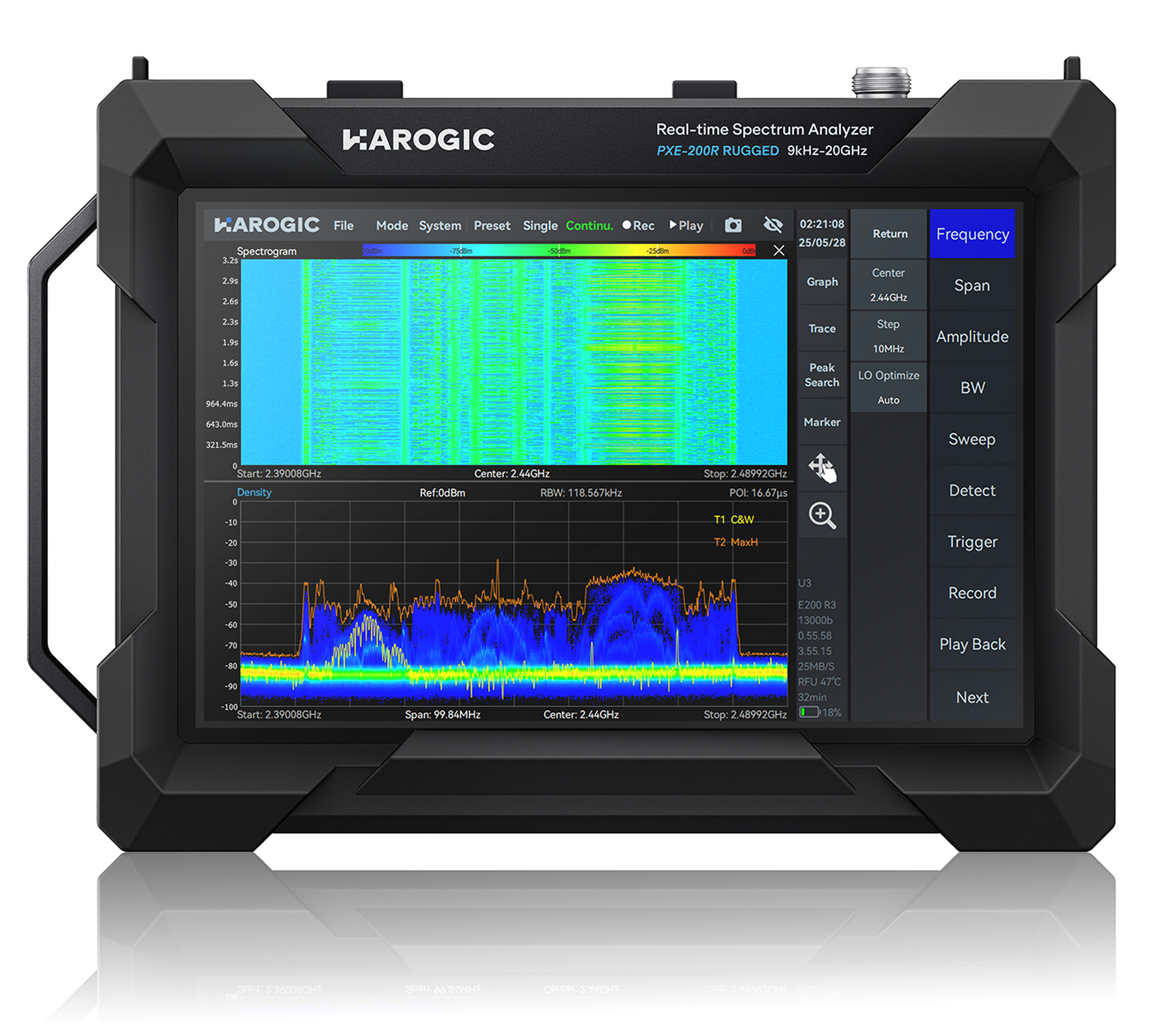

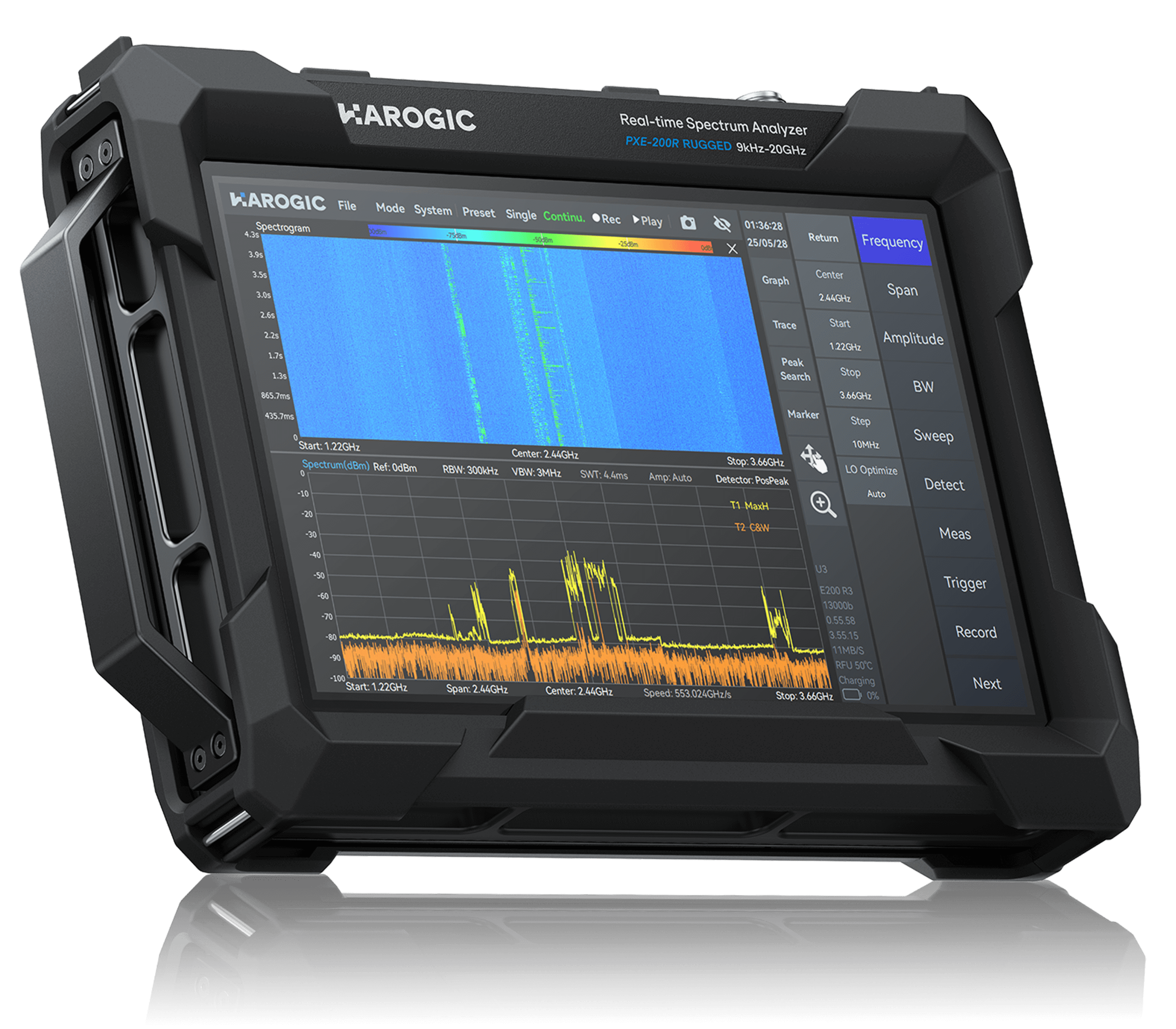

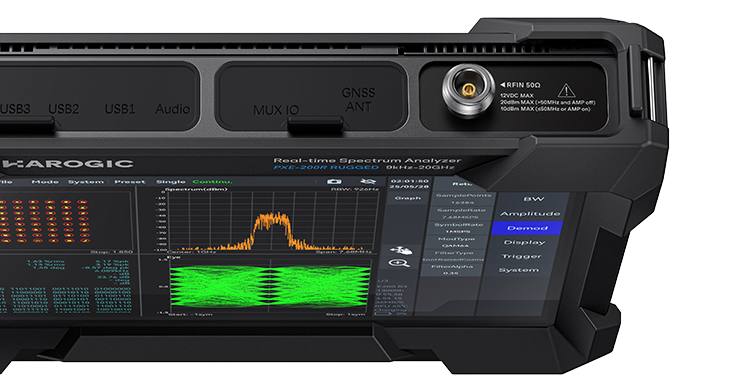

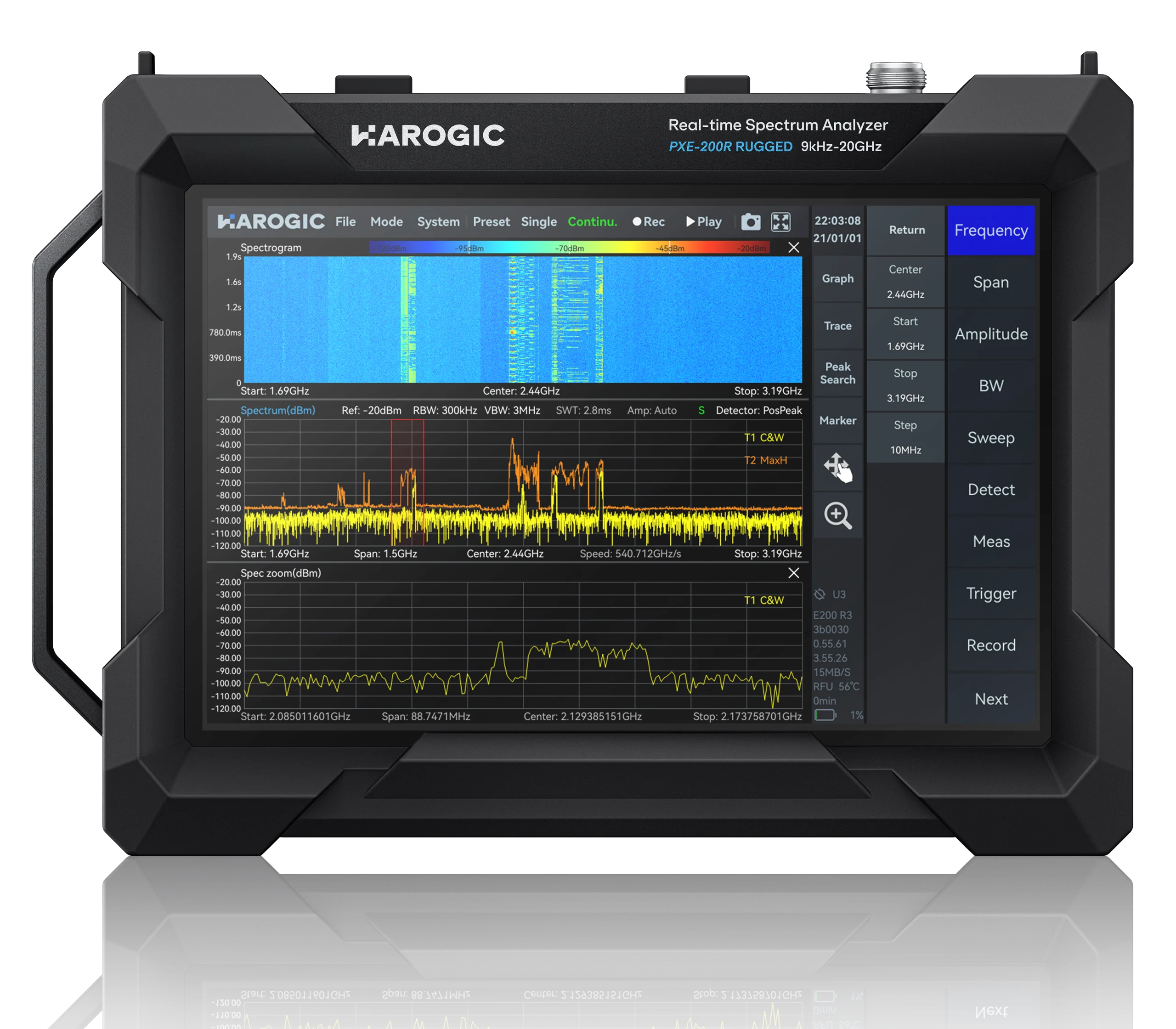

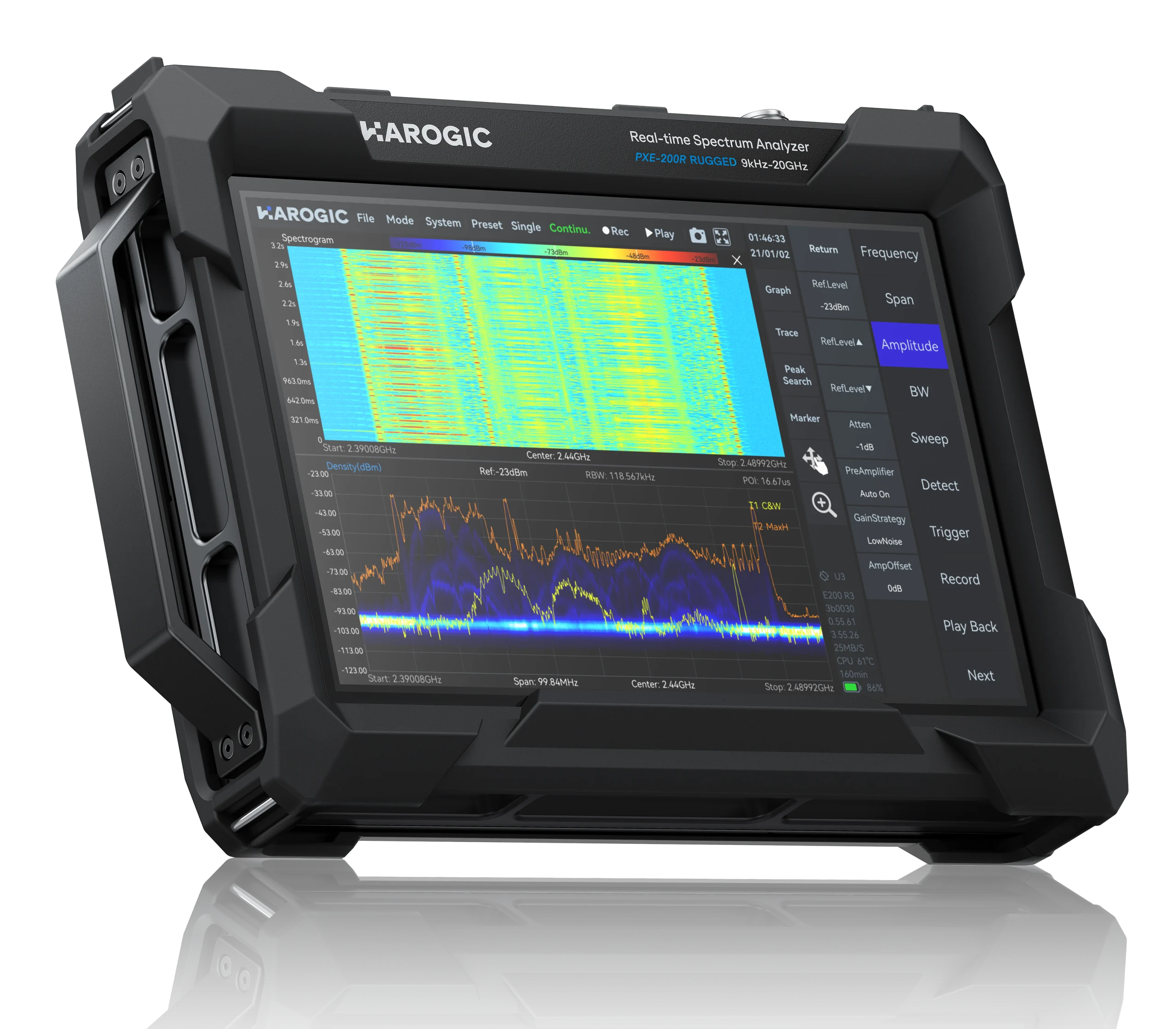

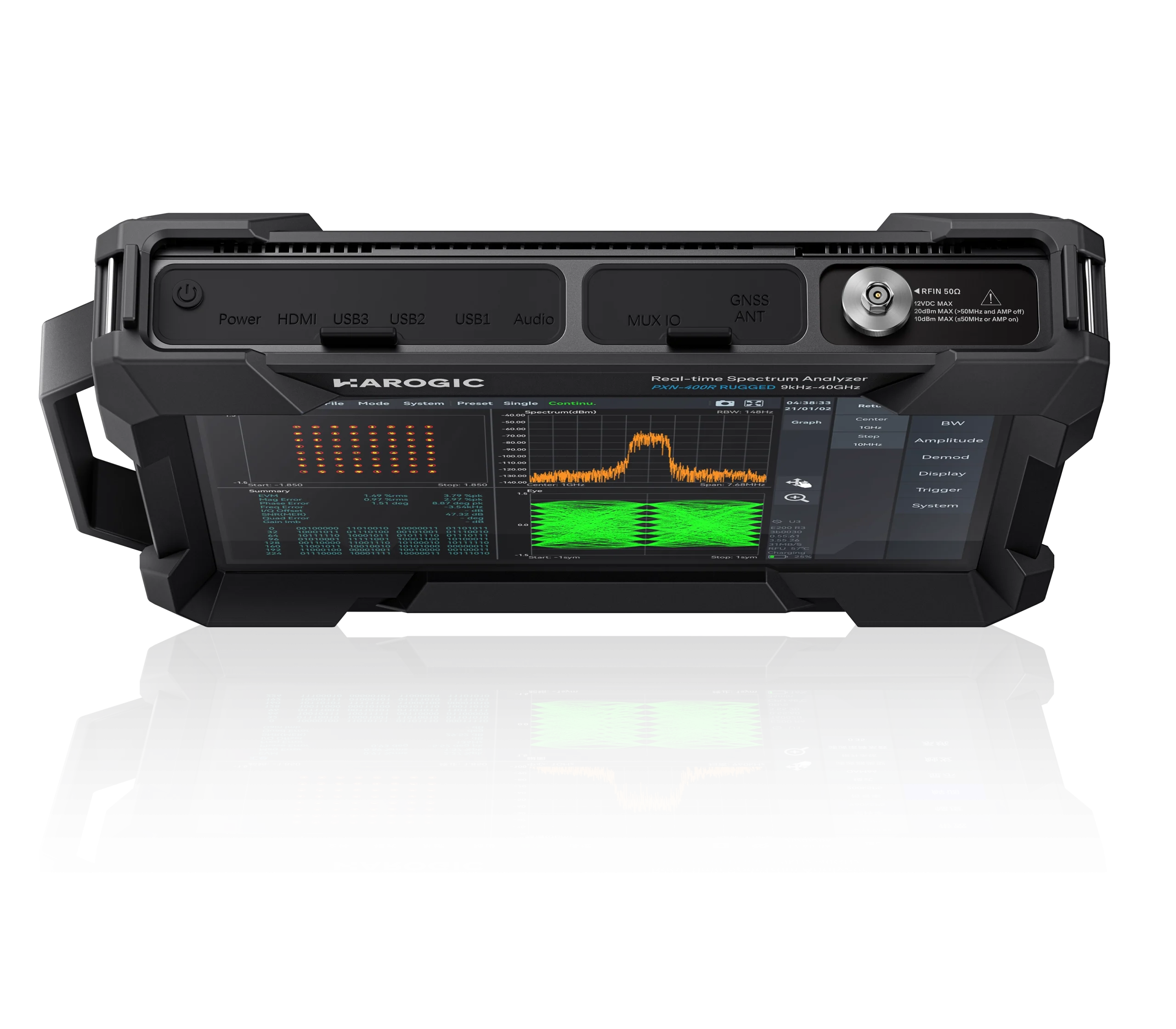

PXR Series

KEY FACTS

IEC IP68 certified
MIL-STD-810H method-512.6/514.8/516.8 certified
2.5 kg lightweight, 10.1-inch multi touchscreen
Frequency range: 9 kHz to 9.5/20/40 GHz
1 GHz DANL: -161 dBm/Hz
Analysis bandwidth: up to 100 MHz
Operation Time: 4 Hours (typ.)
Built-in Nvidia Jetson Orin NX 8G (opt.)
GET A QUOTE

Benefits

Highlight.

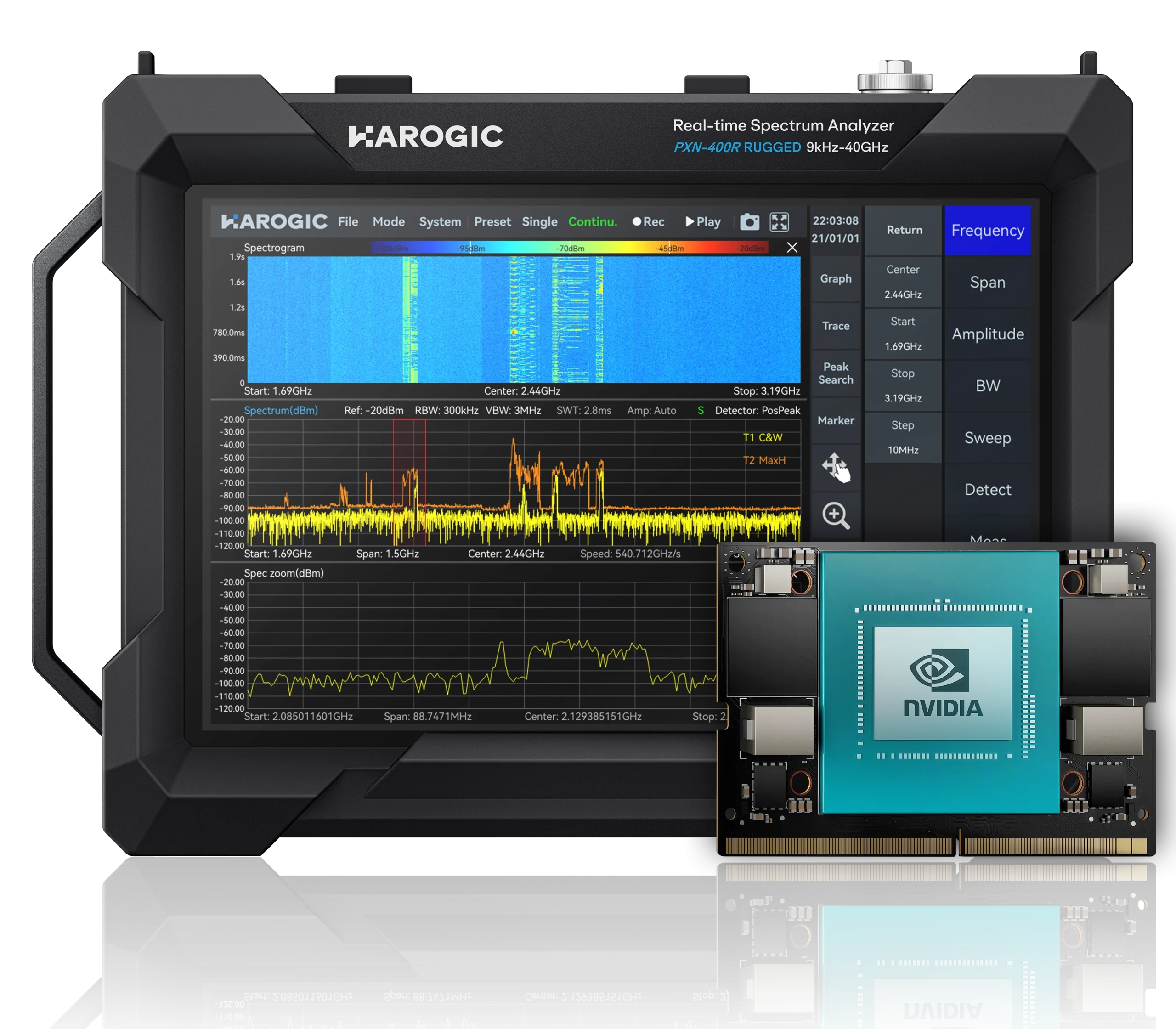

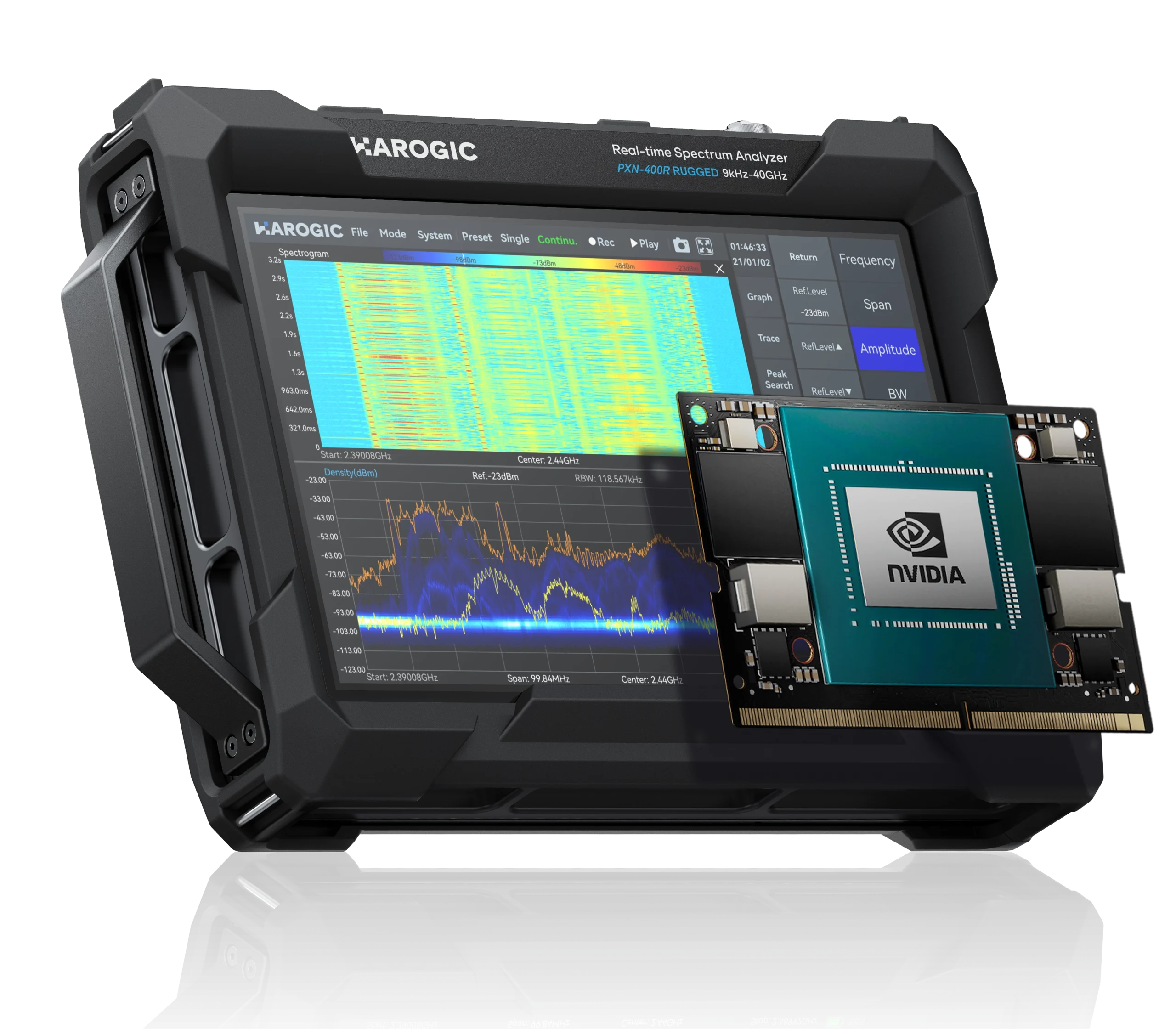

HAROGIC PXR series spectrum analyzer is designed for durabilit with an IP68 rating. It offers a 100 MHz analysis bandwidth as standard and supports frequencies from 9 kHz to 9.5/20/40 GHz, with a sweep speed surpassing 500 GHz/s. Additionally, the PXR series includes the Orin NX 8G option, providing up to 117 TOPS of AI computing power. The analyzer also features a highly compatiblet API, positioning it as an efficient AI-powered spectrum analysis platform for fast spectrum identification and analysis.

Products

Videos.

All-IN-ONE AI PLATFORM: HAROGIC releases IP68 Rugged Spectrum Analyzer

HAROGIC latest PXN-400 40 GHz real-time spectrum analyzer: AT A GLANCE

HAROGIC PXE-200 20 GHz handheld spectrum analyzer first glance

Available

Models.

PXR SERIES
Model
Frequency
Analysis Bandwidth
Phase Noise 1 GHz, 10 kHz offset
Weight
Operation Time
Starting at
PXE-90R
9 kHz-9.5 GHz
100 MHz
-100 dBc/Hz
2.5 kg
4 h
GET A QUOTE
PXE-200R
9 kHz-20 GHz
100 MHz
-100 dBc/Hz
2.5 kg
4 h

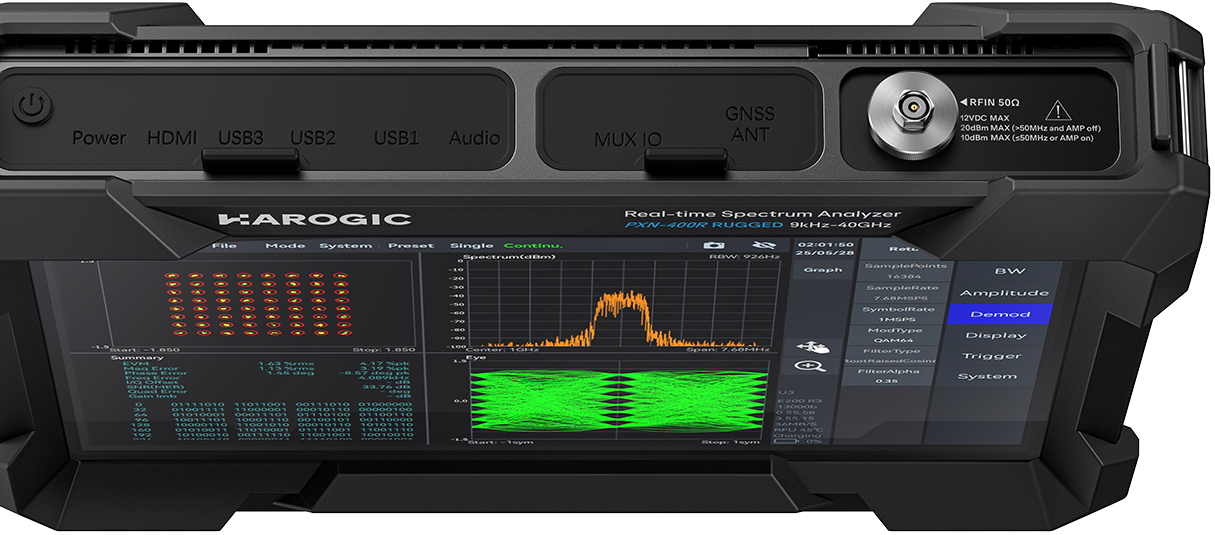

PXN-400R
9 kHz-40 GHz
100 MHz
-107 dBc/Hz
2.5 kg
4 h
OPTIONS
Code
Option
Description
01
Built-in OCXO reference clock
built-in hardware
08
NVIDIA Orin NX 8GB
built-in hardware
34
External omnidirectional antenna, 400-8000MHz, Gain<2dBi
Accessory
35
External active directional antenna, 0.5-10 GHz
Gain<5dBi(AMP OFF), Gain<25dBi (AMP ON)
Accessory
71
Basic digital modulation analysis
Software
72
Pulse signal measurement
Software

Downloads.

PDF

DATASHEET

PDF

USER

MANUAL

PDF

QUICK

START GUIDE
