New SAN Series
KEY FACTS
High-performance superheterodyne receiver
Frequencyrange:9 kHz to 4.5/6/9 GHz
IF and image rejection:>95 dBc(typ.)
1 GHz DANL:-168 dBm/Hz(typ.)
1 GHz phase noise:<-110 dBc/Hz@10 kHz(typ.)
1 GHz phase noise measurement:<-125 dBc/Hz@10 kHz(typ.)
Analysis bandwidth:50 MHz/100 MHz(opt.50)(typ.)
Get a Quote
Benefits
Highlight

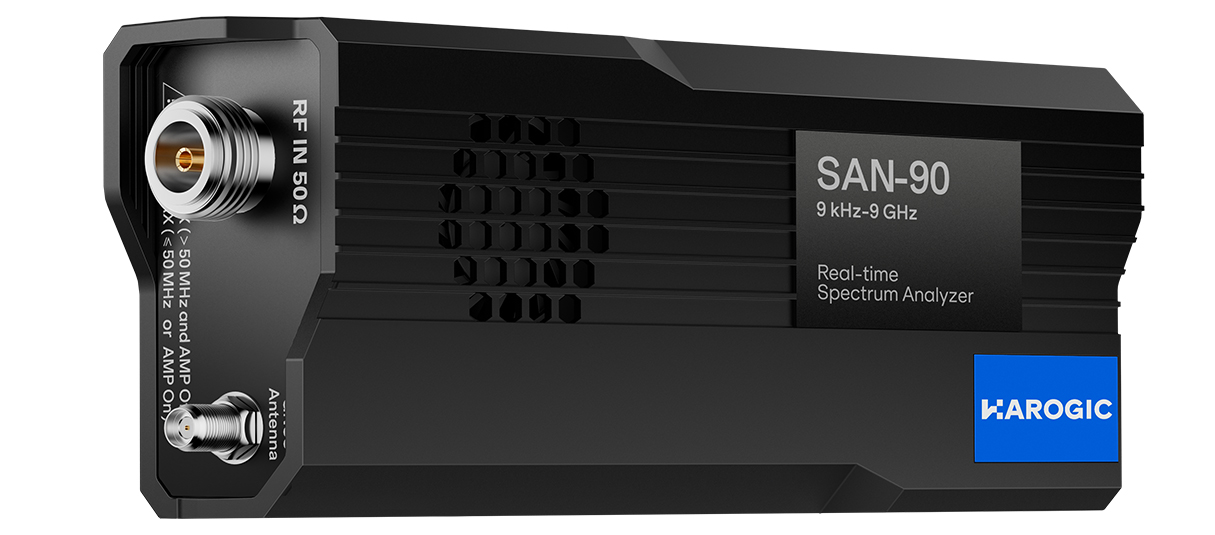

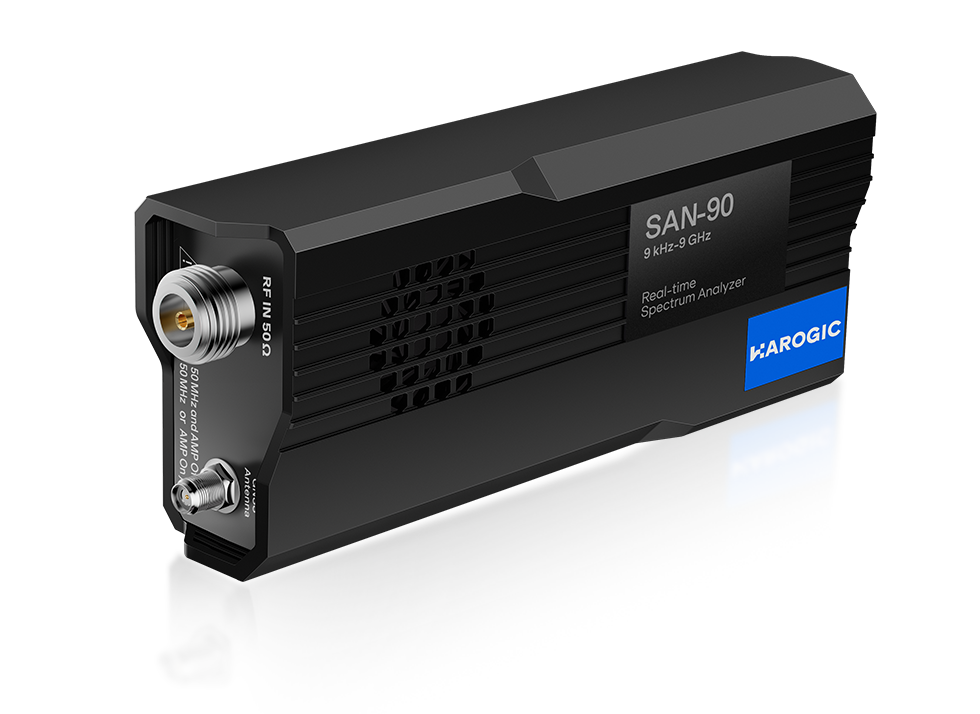

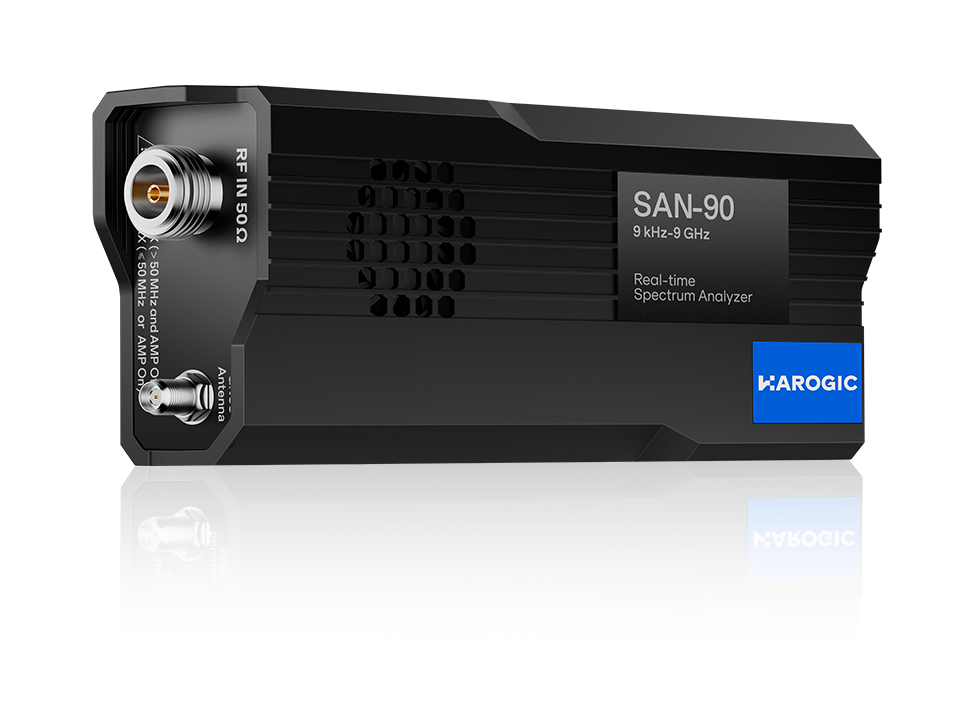

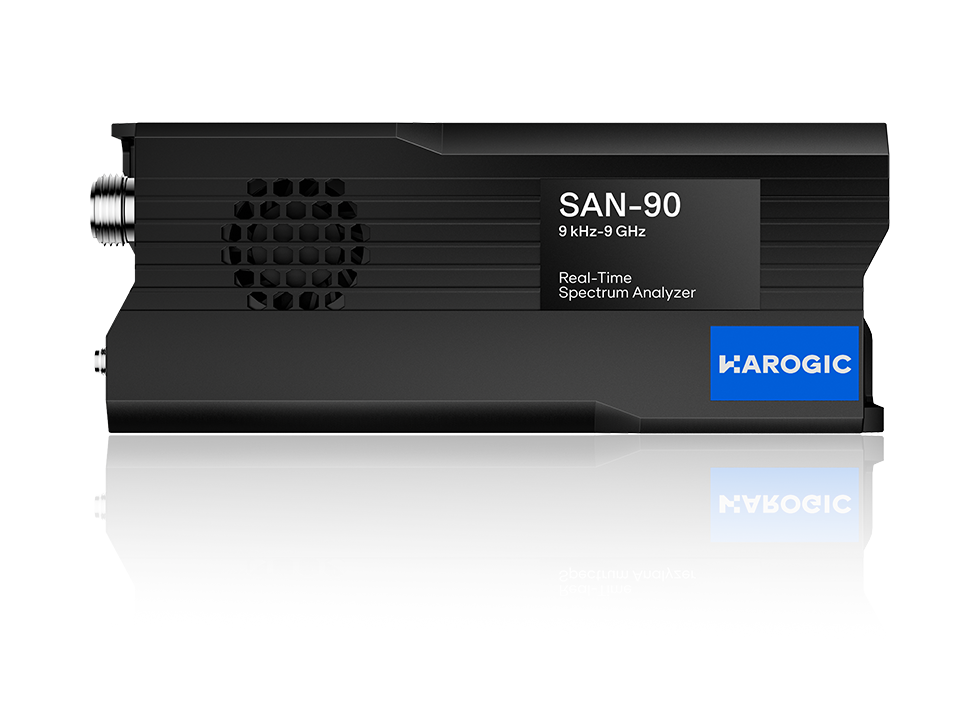

New HAROGIC SAN Series is a USB-based spectrum analyzer and receiver featuring a frequency range of 9 kHz up to 9 GHz. Designed to deliver high performance on a budget, the series includes essential measurement functions such as channel power, automatic harmonics, phase noise, and AM/FM analog demodulation. Furthermore, its highly compatible APIs facilitate seamless secondary development, offering customers exceptional versatility and value.
Products
Videos
HAROGIC Quick Start Guide for SA Series
HAROGIC SAStudio4 Phase Noise Measurement Guide
How to Use API With HAROGIC Model
MoreAvailable
Models
NEW SAN SERIES
Model
Frequency
Phase Noise 1 GHz,
10 kHz offset
10 kHz offset
DANL 1 GHz,
Amp On
Amp On
Analysis Bandwidth
Sweep Speed
RBW=250 kHz
RBW=250 kHz
Price
NEW SAN-45
9 kHz-4.5 GHz
-110 dBc/Hz
-168 dBm/Hz
50 MHz
100 MHz（opt.50）
100 MHz（opt.50）
≥1 THz/s
1,198 USD
NEW SAN-60
9 kHz-6 GHz
-110 dBc/Hz
-168 dBm/Hz
50 MHz
100 MHz（opt.50）
100 MHz（opt.50）
≥1 THz/s
1,998 USD
NEW SAN-90
9 kHz-9 GHz
-110 dBc/Hz
-168 dBm/Hz
50 MHz
100 MHz（opt.50）
100 MHz（opt.50）
≥1 THz/s
Get a Quote
Options
Code
Option
Description
01
Built-in OCXO reference clock
built-in hardware
05
Internal high precision GNSS
built-in hardware
20
AUXIO IO Expansion board
accessory
34
External omnidirectional antenna, 400MHz to 8000MHz, Gain<2dBi
accessory
35
External active directional antenna, frequency range: 0.5 to 10 GHz
Gain: < 5 dBi (amp off); < 25 dBi(amp on)
Gain: < 5 dBi (amp off); < 25 dBi(amp on)
accessory
40
T1 temperature class
built-in hardware
41
T2 temperature class, only available for core
built-in hardware
50
100 MHz analysis bandwidth
built-in hardware
71
Basic vector modulation analysis
software
72
Pulse analysis
software
